Signal Routing and Mapping

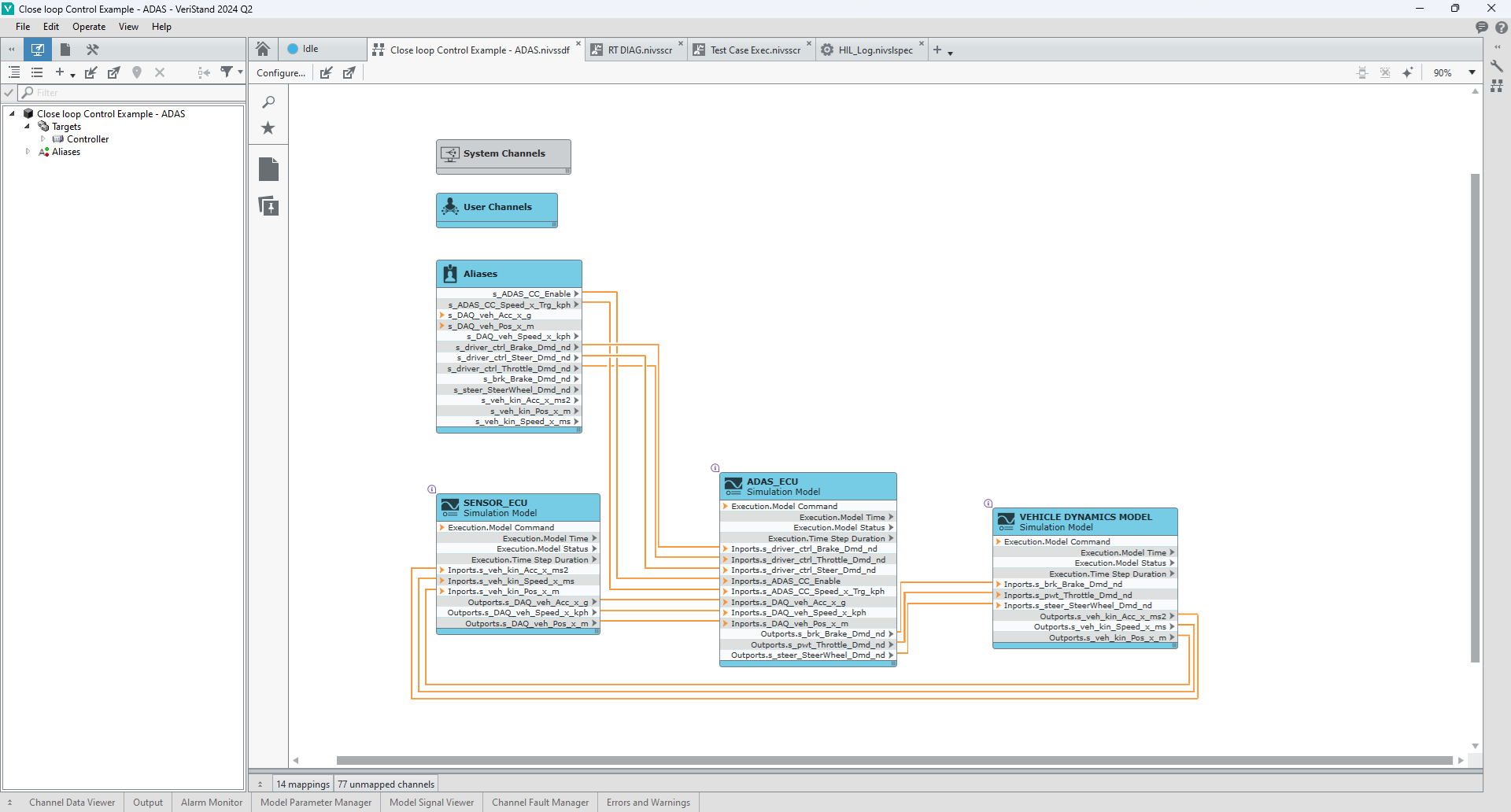

The mapping diagram below depicts the closed-loop validation framework for the ADAS Cruise Control software application under development (to be deployed on the ADAS ECU). The system operates within a rapid control prototyping (RCP) environment, supporting execution on both Windows-based and NI Linux Real-Time (RT) targets.

../image/adas-cruise-control-closed-loop-example.png

Input/output of various subsystems of the plant model / SUT are mapped using orange lines.

NI VeriStand provides users with the possibility to define signal mapping in two ways.

Using a graphical user interface
Using .NET API
