PWM Digital Output with FIU
This signal path is dedicated to implementing high speed Digital output with fault insertion capability up to 1A. The signal path adopts FPGA technology that make it suited for high frequency applications and high bandwidth models such as inverter applications.
Attributes
| Attributes | Value |
|---|---|
| Channels/signal path | 32 |
| Type | Digital Output |
| Frequency | 10ns with 100 MHz FPGA |
| Voltage | LVTTL (3.3V) or TTL (5V) |
| Max. Current | 32 mA/ch or 800 mA total combined |
| FIU | 32 single-ended channels, 1A |
Components
| Component | Model | Specification | Part Number |
|---|---|---|---|
| SLSC Card | OP8911-F | OP8911-F | 755304-01 |
| RTI | RTI-12301 | RTI-12301 | 785369-01 |
| Cable | SHC68-C68-RDIO2 | SHC68-C68-RDIO2 | 156166-01 |
| PXI | PXIe-7820R, PXIe-7821R, PXIe-7822R | PXIe-7820R, PXIe-7821R, PXIe-7822R | 783484-01 783485-01 783486-01 |

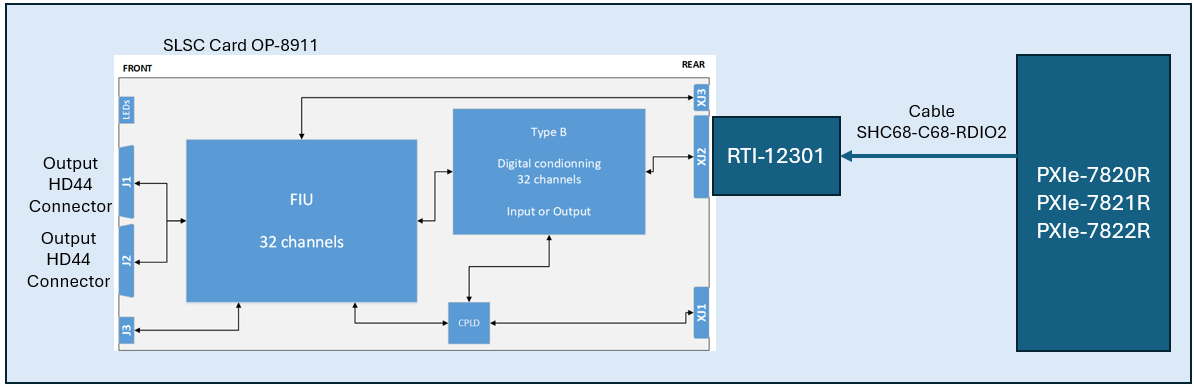

Connection Diagram
