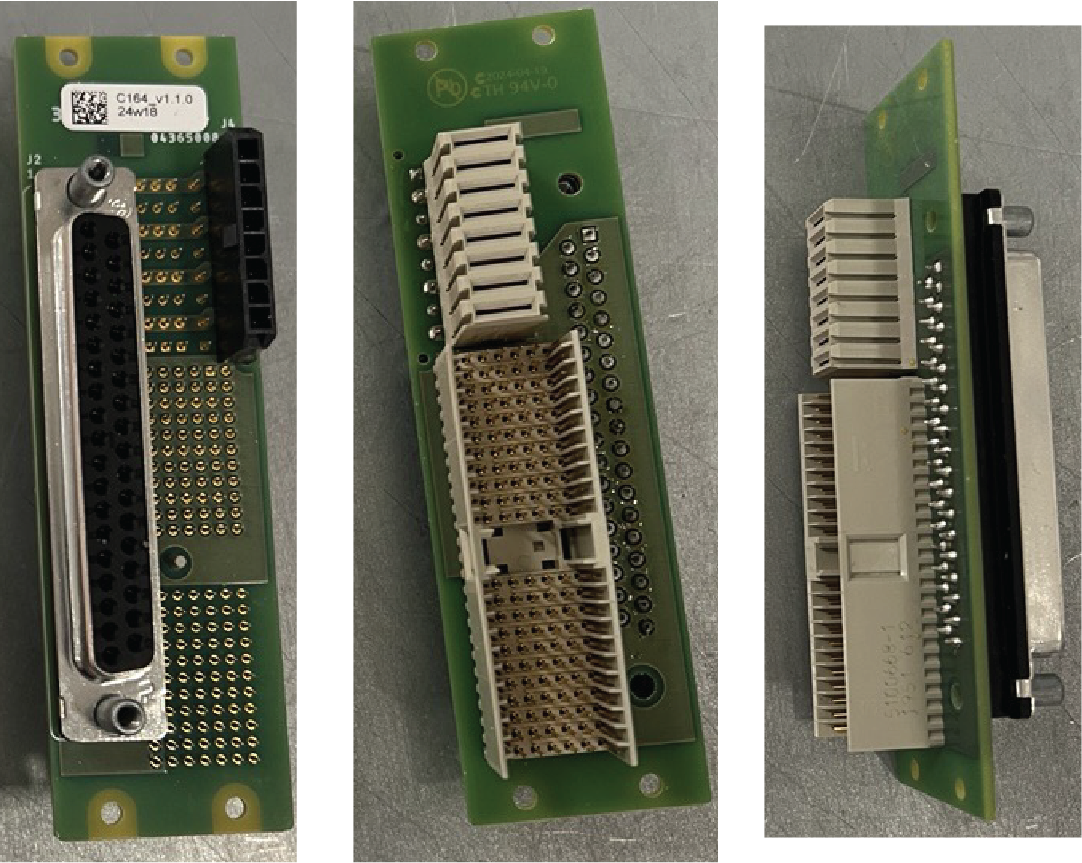

B092 RTI
Use the B092 with the AL-3010 and AL-3011 resistor emulator modules to simulate resistive sensors.
Molex Connector Pinout
| Molex Pin | Connection | Details |
|---|---|---|
| A | DUT_GND | Do not connect. |
| B | DUT_POW | Do not connect. |
| C | NC | Do not connect. |
| D | NC | Do not connect. |
| E | DUT_GND | Do not connect. This terminal is ground, GND pins must connect to corresponding pins on the front connectors (J1 and J2). |
| F | AUX2 FI+ | This terminal is the positive rail of an external source. Voltage input 0 V DC to 60 V DC. |
| G | DUT_GND | Do not connect. This terminal is ground, GND pins must connect to corresponding pins on the front connectors (J1 and J2). |
| H | AUX1 FI+ | This terminal is the positive rail of an external source. Voltage input 0 V DC to 60 V DC. |
