Charging Simulator Signal Path

The SCS-100 connects directly to an EVCC or SECC ECU to validate software and logic conformance with global standards like ISO 15118, DIN 70121, and IEC 61851. By interfacing with the Control Pilot and Proximity Pilot lines, it simulates and measures ±12V PWM duty cycles, verifies PP resistance, and tests standard charging state transitions (States A to E) without requiring high-voltage hardware.

Attributes

Attribute	Value
Channels/signal path	1
Protocols	J1772, ISO 15118, DIN SPEC 70121, MCS, NACS, GB/T, CHAdeMO, ChaoJi
Application	EVESE Simulation and/or Charger Simulation
FIU	Protocol and Physical Layer
Interface to HIL	Ethernet

Components

Component	Model	Specifications	Part Number
Smart Charging Simulator	SCS-100	SCS-100 device specification	SCS-100

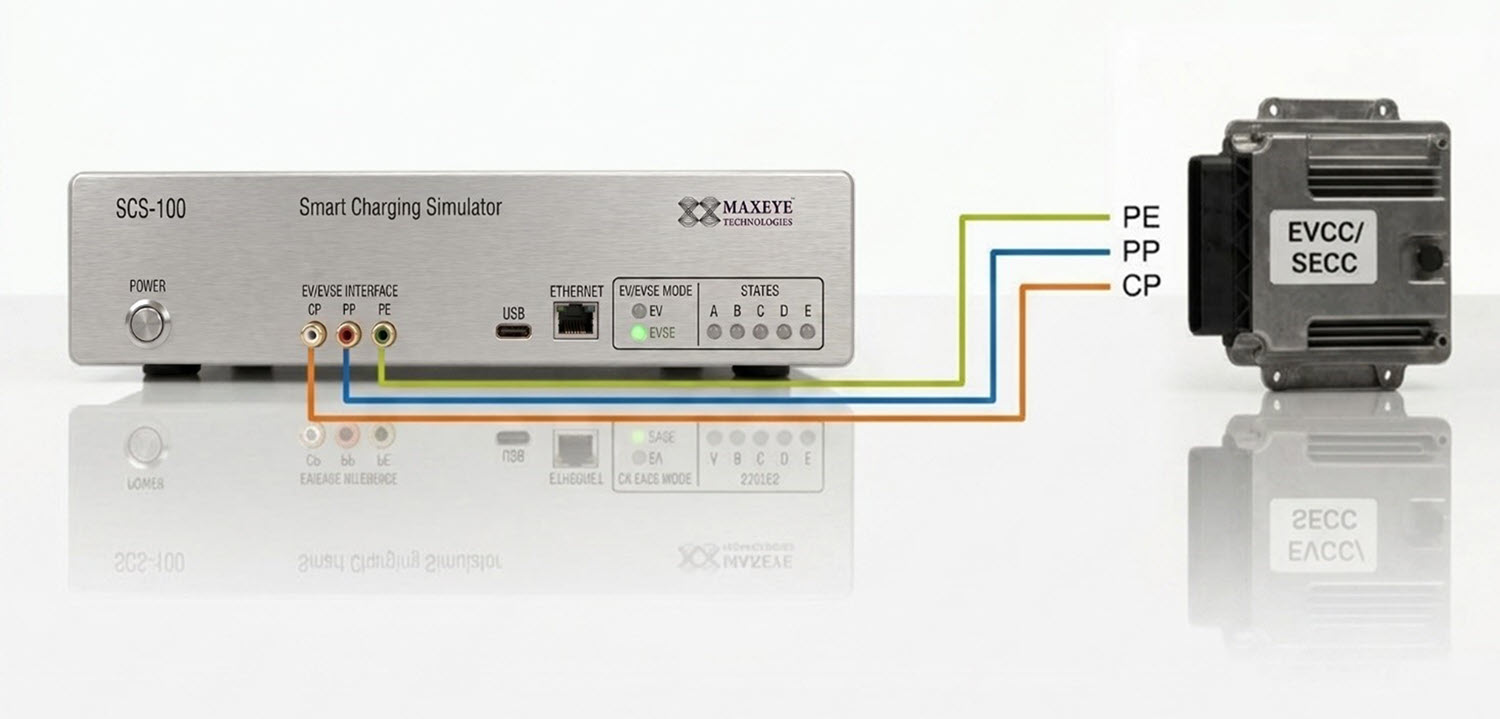

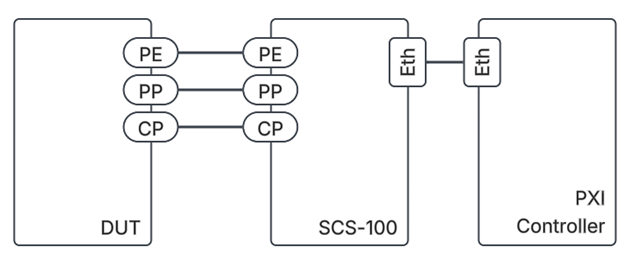

Connection Diagram
