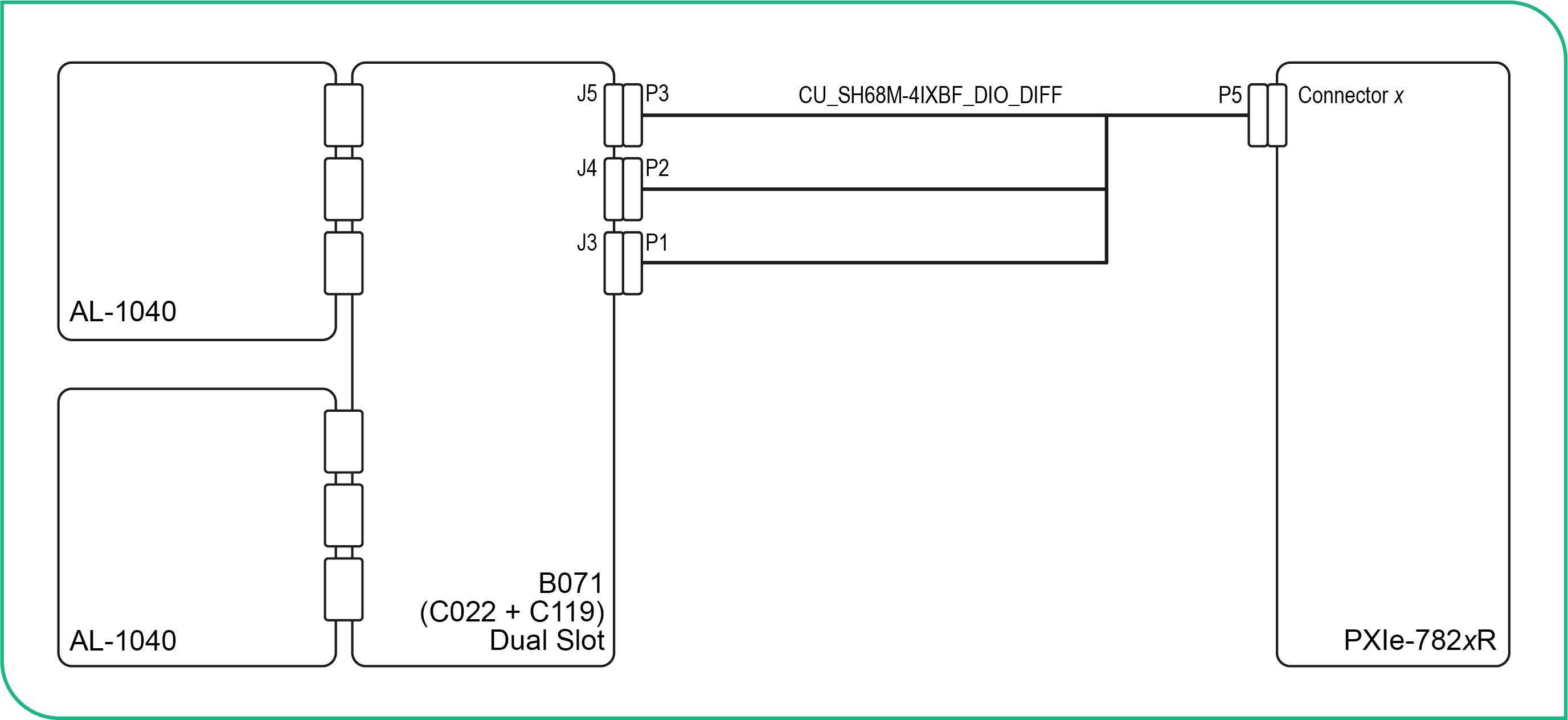

Wheel Speed Sensor Emulation Signal Path
Wheel speed sensor emulators simulate wheel speed signals for automotive control systems like ABS, ESC, and traction control..
Components
| Component | Model | Specifications |
|---|---|---|
| SLSC | AL-1040 (x2) | AL-1040 |
| RTI | B071 | B071 |
| IX Cable | CU_SH68M-4IXBF_DIO_DIFF | SH68M-4IXBF DIO DIFF cable |
| PXI | PXIe-7820R, PXIe-7821R, or PXIe-7822R | PXIe-7820R, PXIe-7821R, PXIe-7822R |
Channel Parameters
| SLSC Channel | SLSC Channel Parameters | PXI Channel | PXI Channel Paramters |
|---|---|---|---|
| TBD | TBD | TBD | TBD |
