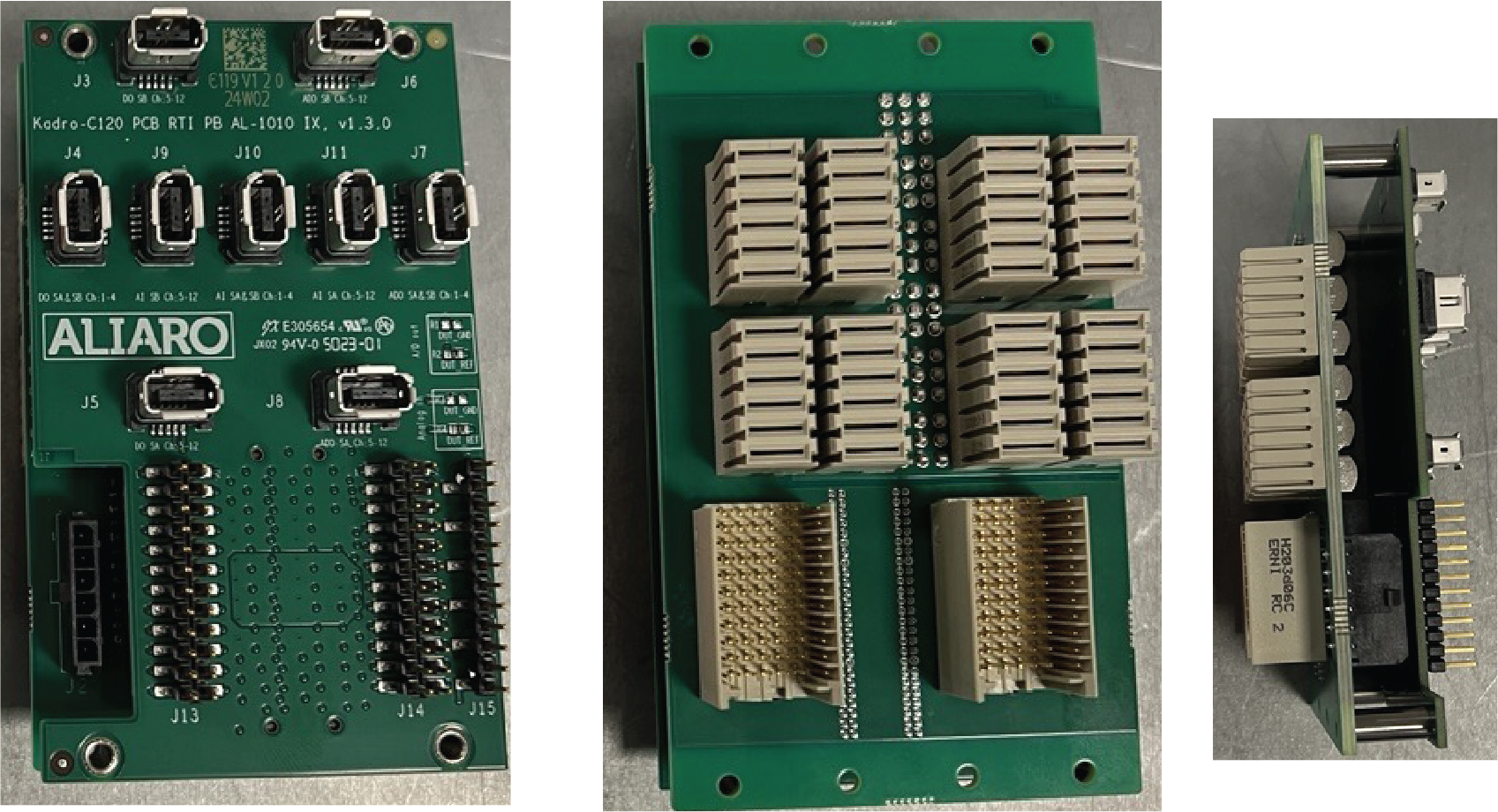

B071 RTI
Use the B071 with AL-1010 MIO module for wheel speed and high-current AI, AO and DIO with FIU applications.
Molex Connector Pinout
| Molex Pin | Connection | Details |
|---|---|---|
| 1 | DUT_GND | Do Not Connect. |
| 2 | DUT_REF | Do Not Connect. |
| 3 | DUT_POW | Do Not Connect. |
| 4 | AMP_POW+ | Positive rail of the supply voltage for the optional amplifier. Voltage input +24 VDC. |
| 5 | AMP_POW- | Negative rail of the supply voltage for the optional amplifier. Voltage input -24 VDC. |
| 6 | TS_GND | Test system ground. |
SLSC Channels
| RTI Connector | Signal Type | SLSC Module | SLSC Channels |
|---|---|---|---|
| J3 | DIO | Right | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
| J4 | DIO | Right, Left | Right DUT 1, Right DUT 3, Left DUT 1, Left DUT 3, Left DUT 4, Left DUT 2, Right DUT 4, Right DUT 2 |
| J5 | DIO | Left | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
| J6 | AO | Right | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
| J7 | AO | Right, Left | Right DUT 1, Right DUT 3, Left DUT 1, Left DUT 3, Left DUT 4, Left DUT 2, Right DUT 4, Right DUT 2 |
| J8 | AO | Left | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
| J9 | AI | Right | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
| J10 | AI | Right, Left | Right DUT 1, Right DUT 3, Left DUT 1, Left DUT 3, Left DUT 4, Left DUT 2, Right DUT 4, Right DUT 2 |
| J11 | AI | Left | DUT 5, DUT 7, DUT 9, DUT 11, DUT 12, DUT 10, DUT 8, DUT 6 |
FIU Motherboard Pinout
| FIU | Connection | Details |
|---|---|---|
| 1 | AUX1A | Fault Bus 1 + Rail |
| 2 | AUX1B | Fault Bus 2 + Rail |
| 3 | AUX1C | Fault Bus 3 + Rail |
| 4 | AUX2A | Fault Bus 1 - Rail |
| 5 | AUX2B | Fault Bus 2 - Rail |
| 6 | AUX2C | Fault Bus 3 - Rail |
