PXI Platform Overview

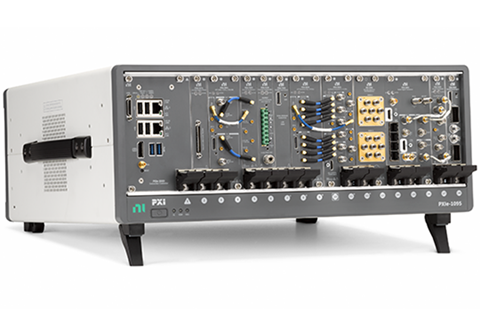

The PXI (PCI eXtensions for Instrumentation) platform is a modular, high-performance hardware standard that forms the core of many modern HIL (Hardware-in-the-Loop) systems. Developed for test, measurement, and automation applications, PXI combines the electrical features of the PCI bus with a rugged, compact form factor and integrated timing and synchronization capabilities. For HIL applications, PXI provides a flexible, scalable, and well-supported foundation for building reliable test systems that can evolve with product requirements.
Benefits of PXI for HIL Testing
PXI is particularly well-suited for HIL testing due to its combination of performance, modularity, and software integration.
| Feature | Description |
|---|---|
| High Throughput, Low Latency | PXI Express provides high-speed backplane communication, enabling low-latency data exchange and high bandwidth — ideal for real-time simulation and control in HIL systems. |
| Modularity and Scalability | Engineers can build systems with only the IO modules they need and scale up easily by adding slots or chassis. This supports everything from small R&D setups to large production test systems. |
| Deterministic Timing and Synchronization | PXI integrated timing and triggering resources allow sub-microsecond synchronization across modules, ensuring precise, repeatable signal coordination for closed-loop testing. |
| Rich Ecosystem of IO Modules | PXI supports a wide range of COTS modules from NI and third-party vendors, covering analog/digital IO, communication buses (CAN, LIN, FlexRay, etc.), and instrumentation (DMMs, scopes, signal generators). |
| Seamless Software Integration | PXI integrates with NI software like LabVIEW, VeriStand, and TestStand. Real-time controllers support deterministic model execution using tools like Simulink Real-Time or NI VeriStand. |
| Compact, Industrial-Grade Design | PXI systems are rugged and space-efficient, making them suitable for lab benches, production test cells, and embedded validation environments where reliability and maintainability are key. |
