Hardware Design Guide
Signal Paths
DSI3
DSI3 Signal Path
Components
Component
Model
Specifications
Part Number
SLSC
AL-5010
AL-5010
790682-01
RTI
B090
B090
790672-01

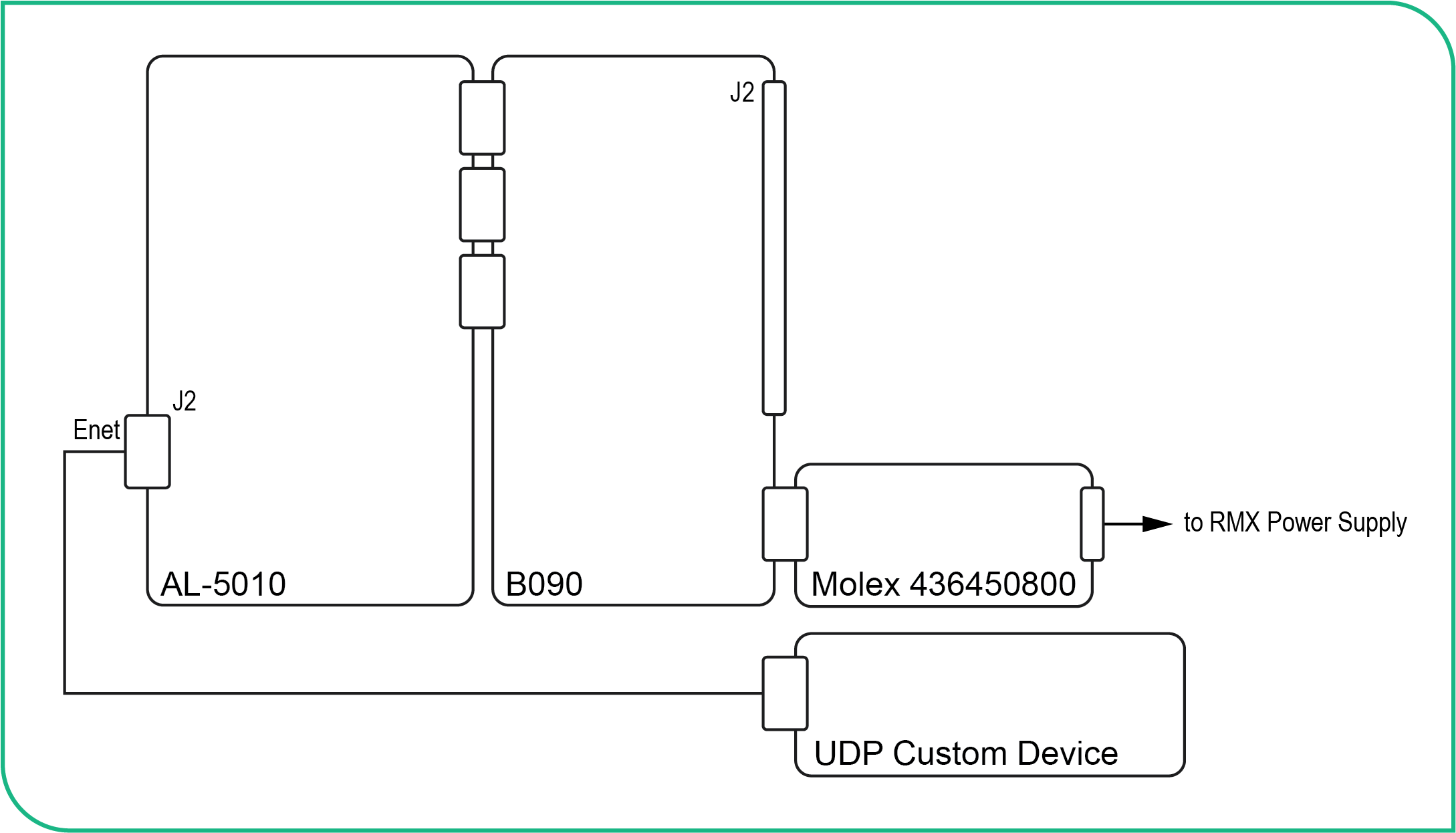

Connection Diagram
