Programmable Power Supplies

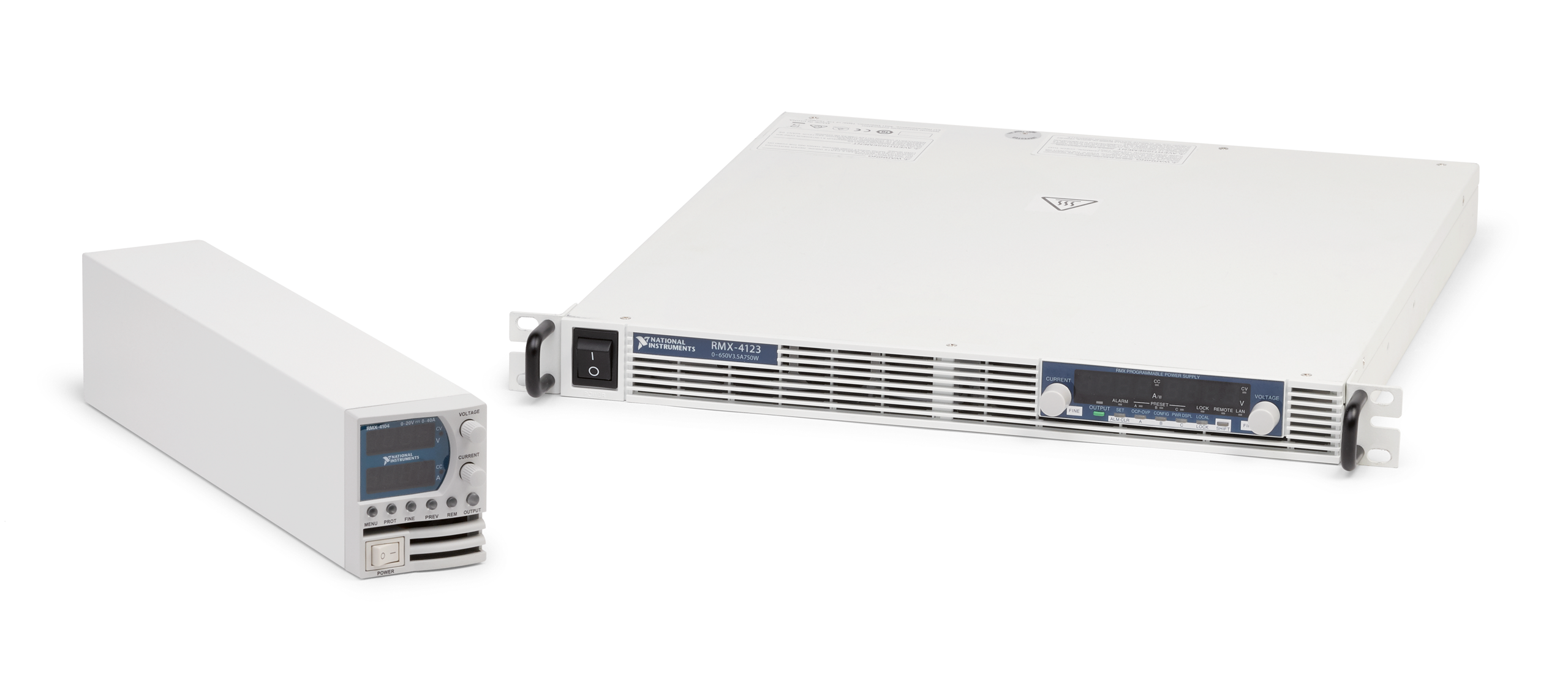

Rack-mount power supplies are designed for automated testing and deliver programmable DC power in either full or 1/6 rack-width form factors. The RMX-412x models provide up to 1,500 watts of power in a 1U, full-rack form factor, with flexible voltage and current limits up to 650 VDC or 150 A. This makes the RMX-412x models suitable for test systems that require high power and a wide range of voltage and current settings. If your application needs more than the standard voltage or current limits, you can connect up to two devices in series for higher voltage, or up to four devices in parallel for higher current. The RMX-410x models supply several hundred watts in a compact 2U, 1/6 rack-width design, making them ideal for test systems that require multiple power rails. Both power supply series include buttons and knobs for manual operation, as well as USB, LAN, RS232, and analog control options for remote or automated use.

Refer to the Power Supplies and Loads shop page on ni.com for more information about the different models.

Software

The API supports VeriStand and LabVIEW, and includes example projects. It is SCPI-compliant, making it compatible with NI-VISA and text-based programming languages. A calibration software utility is also provided.
