Analog Input, High Current with FIU
Analog input is dedicated to acquiring voltage signals where the user needs to create electrical faults like short to GND or Vbat, line disconnected and shorted, that can drive currents up to 40 A.
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 12 |
| Voltage | ±60 V |
| FIU current | 10 A/CH, 40 A maximum |
Components
| Component | Model | Specifications | Part Number |
|---|---|---|---|
| SLSC | AL-1010 (x2) | AL-1010 | 788117-01 |
| RTI | B094 | B094 | 790674-01 |
| Molex Connector | 436450600 (Housing), 43030-0038 (Pins) | Housing, Pins | Molex Part Number: 0436450600 Molex Part Number: 0430300038 |
| IX Cable | CU_SH68M-8IXBF_AI_DIFF | SH68M-8IXBF AI DIFF cable | 134730-01 – 1 meter version 134729-1R6 – 1.6 meter version |
| PXI | PXIe-6361, PXIe-6363, PXIe-6355, or PXIe-6365 | PXIe-6361, PXIe-6363, PXIe-6355, PXIe-6365 | 781055-01,781056-01, 783632-01, 783633-01 |

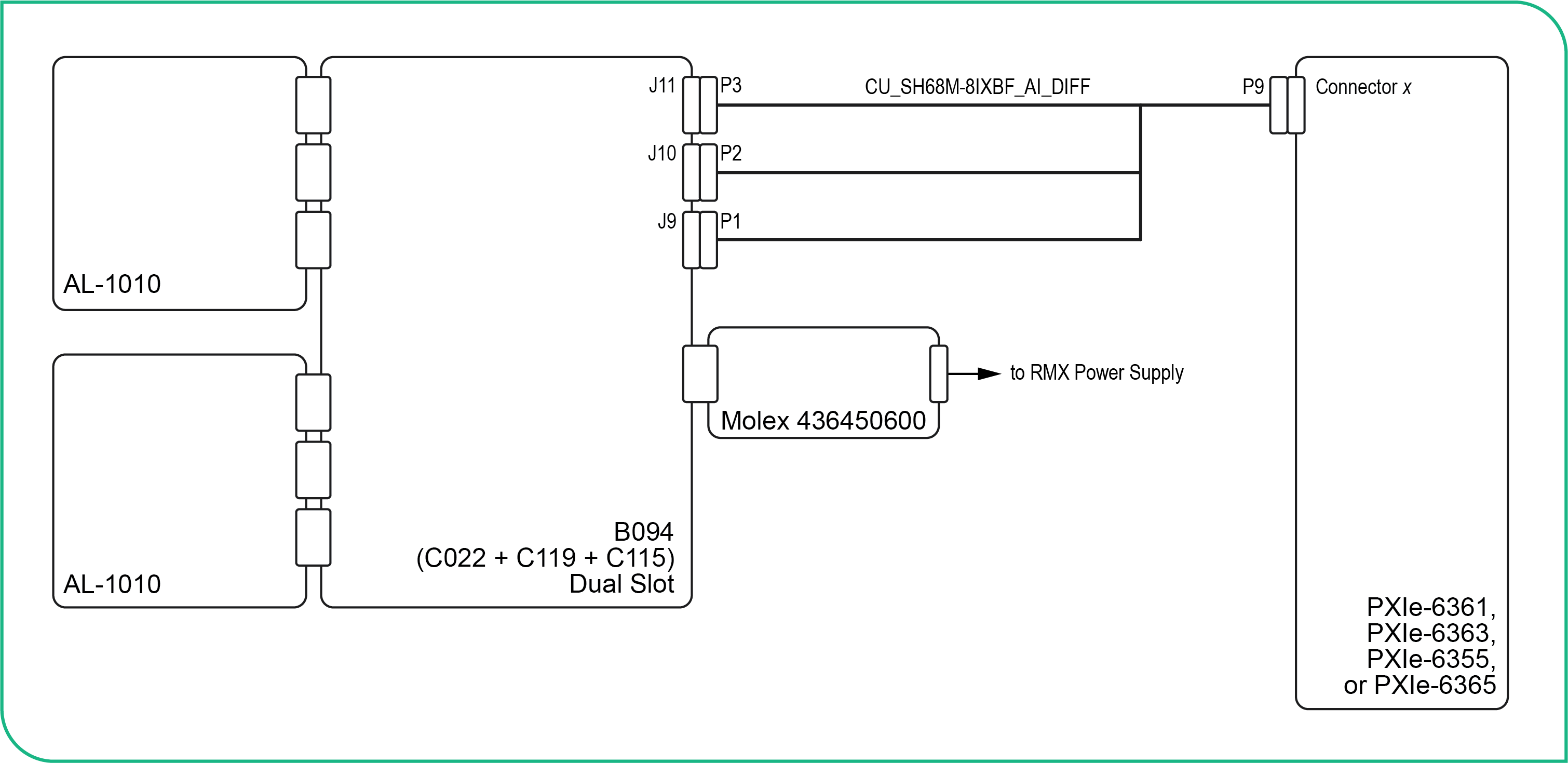

Connection Diagram
