Analog Output, Low-Current with FIU (CompactHIL)

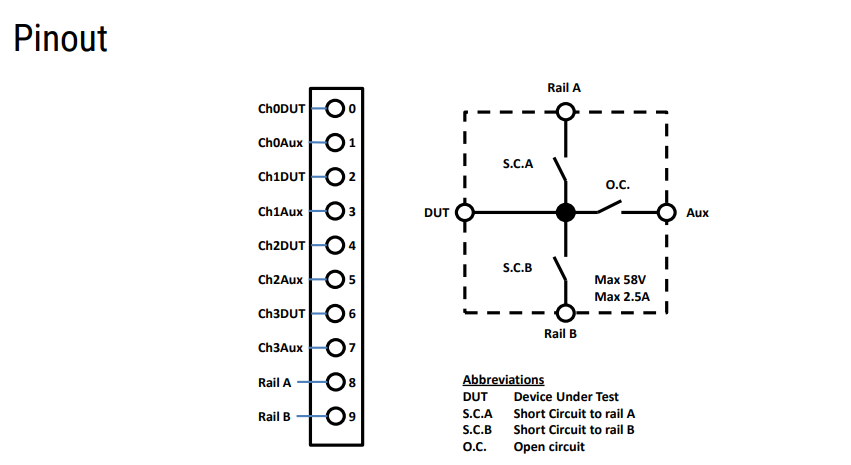

Analog output dedicated to generating voltage signals to simulate sensors or signals for the ECU. In combination with the Wireflow Module WF 3154 Fault Insertion capabilities can be added for 4 channels per module. The fault insertion module will provide short to RAIL (A/B) and Open Circuit fault capabilities for each channel connected to it.
Voltage Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 16 |
| Voltage | ±10 V |
| Resolution | 16 bit |
| FIU Channels per module | 4 |
| FIU Current | 2.5A |
| Max Voltage | 58V |
Voltage Components
| Component | Model | Specification | Part Number |
|---|---|---|---|
| C Series Module | NI 9264 | NI-9264 and sbRIO-9264 Specifications - NI | 780927-01 |
| Connector | NI 9923 | NI-9923 Dimensional Drawings - NI | 781503-01 |
| FIU Module | WF 3154 | WF 3154 Specifications | - |
Current Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 8 |
| Current | ±20 mA |
| Resolution | 16 bit |
| FIU Channels per module | 4 |
| FIU Current | 2.5A |
| Max Voltage | 58V |
Current Components
| Component | Model | Specification | Part Number |
|---|---|---|---|
| C Series Module | NI-9266 | NI-9266 Specifications - NI | 785047-01 |
| Connector | NI-9923 | NI-9923 Dimensional Drawings - NI | 781503-01 |
| FIU Module | WF 3154 | WF 3154 Specifications | - |
