LIN with FIU
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 2 or 6 |
| Protocols | LIN |
Components
| Component | Model | Specifications | Part Number |
|---|---|---|---|
| SLSC | AL-2010 | AL-2010 | 759352-01 |
| RTI | B062 | B062 | 790670-01 |
| Molex Connector | 436450800 (8-Circuit Housing), 436451000 (10-Circuit Housing), 43030-0038 (Pins) | 8-Circuit Housing, 10-Circuit Housing, Pins | Molex Part Number: 0436450800 Molex Part Number: 0436451000 Molex Part Number: 0430300038 |
| Transceiver | TRC-8546 | TRC-8546 | 783702-02 |
| PXI | PXIe-8510/2 (2 Channels), PXIe-8510/6 (6 Channels) | PXIe-8510 | 784121-01 784122-01 |

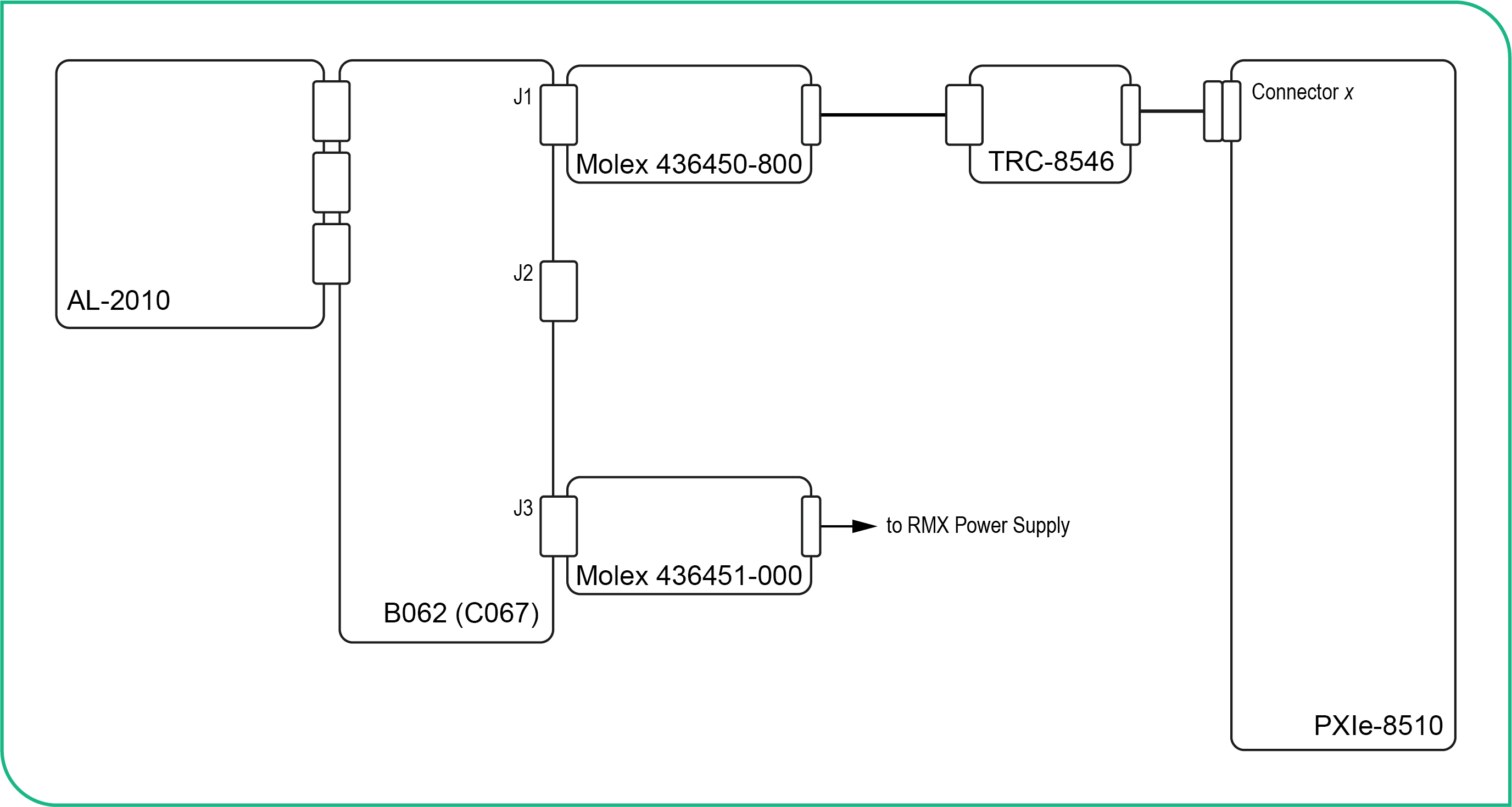

Connection Diagram

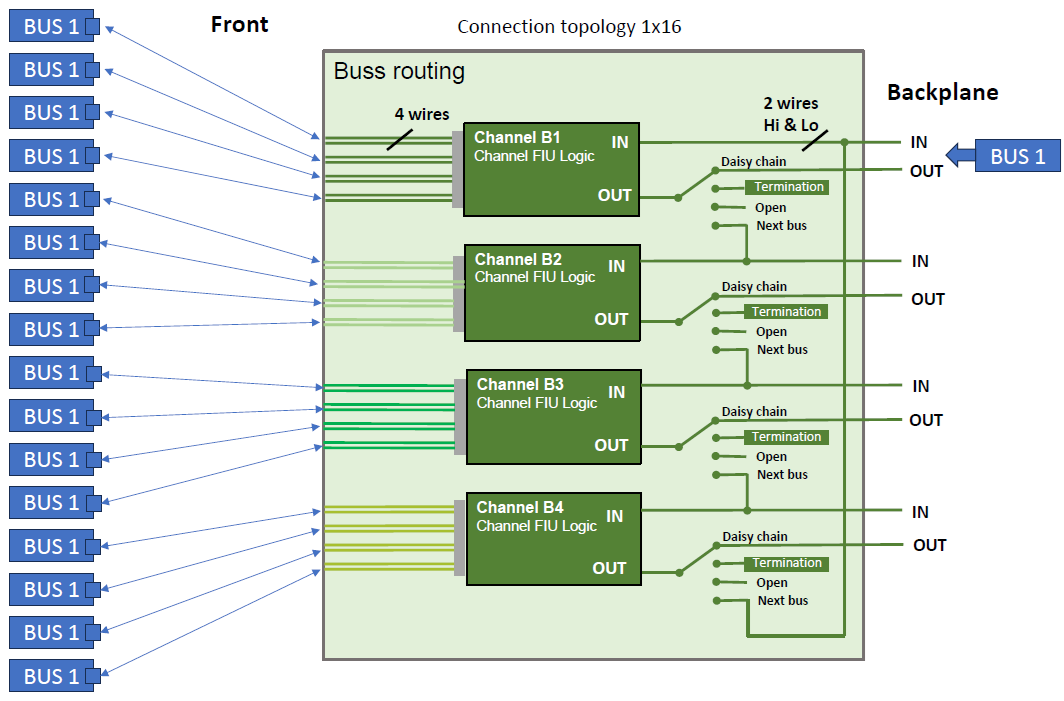

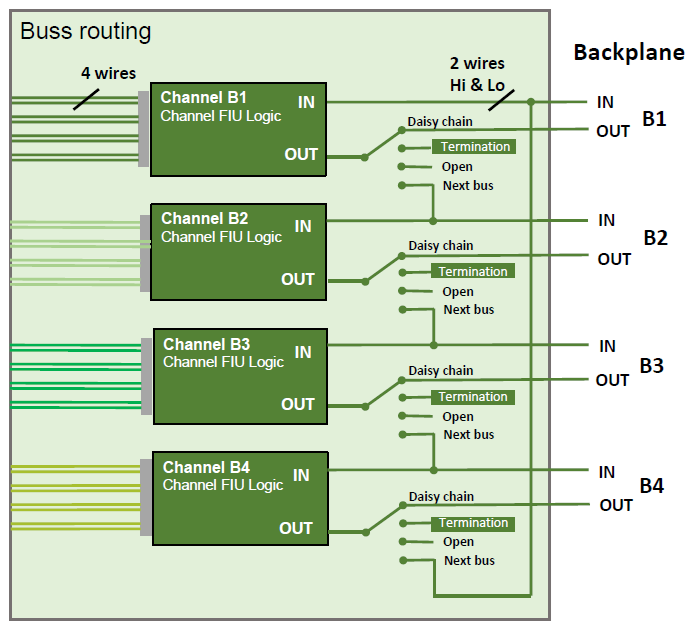

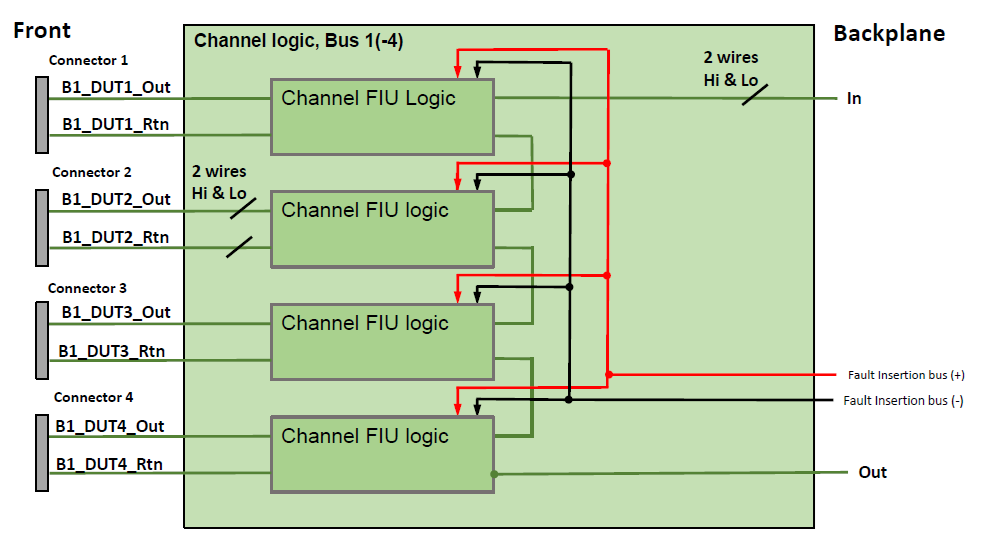

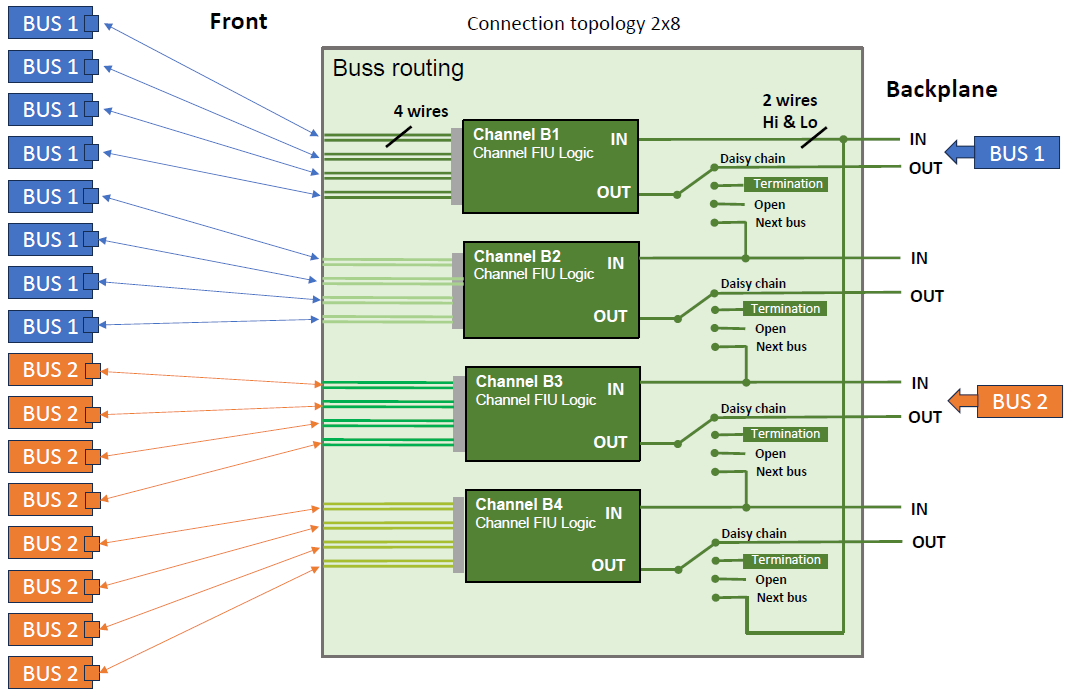

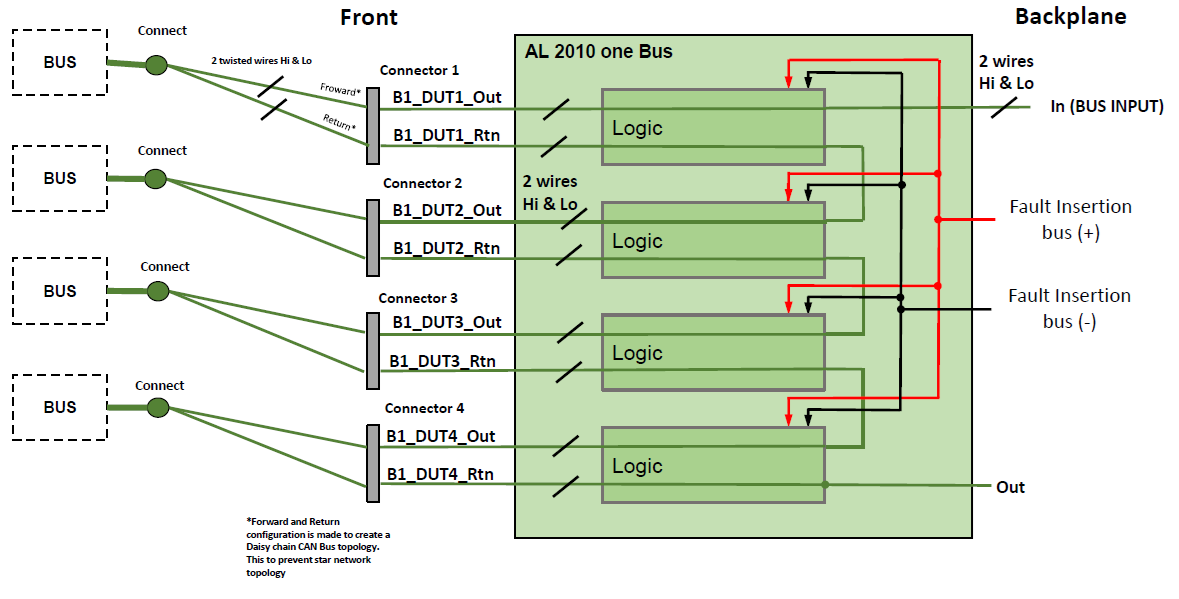

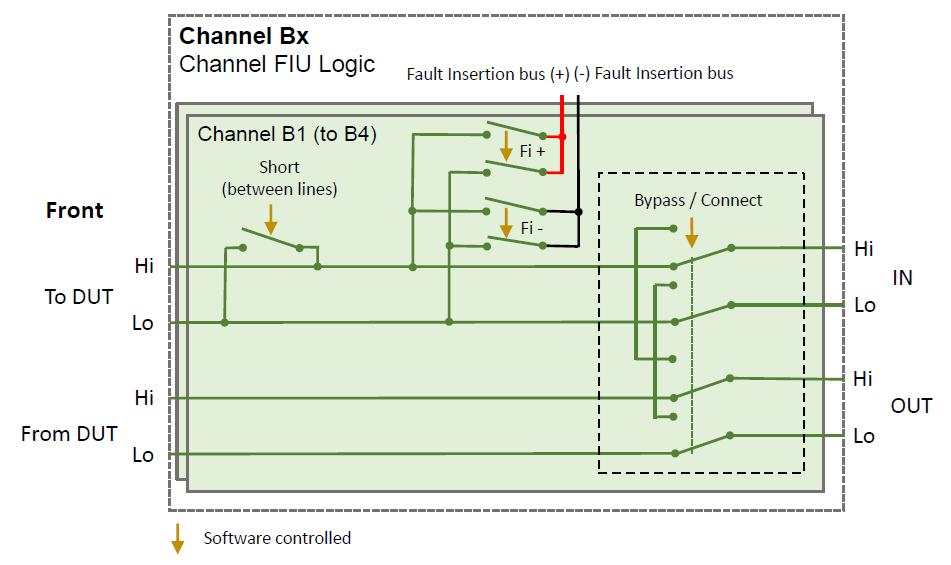

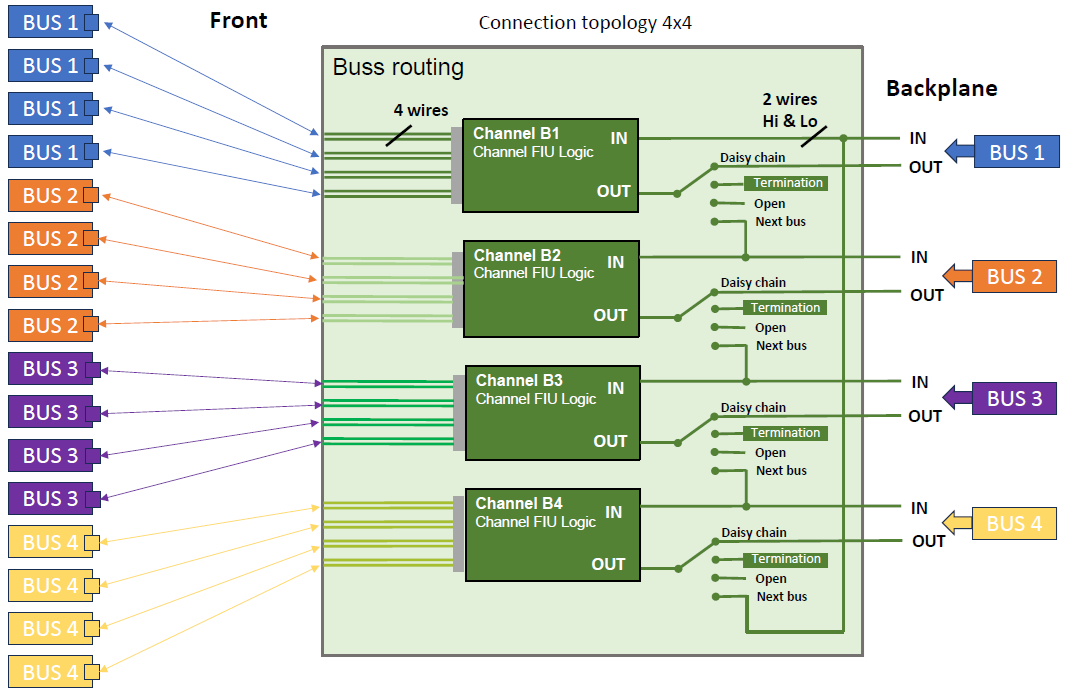

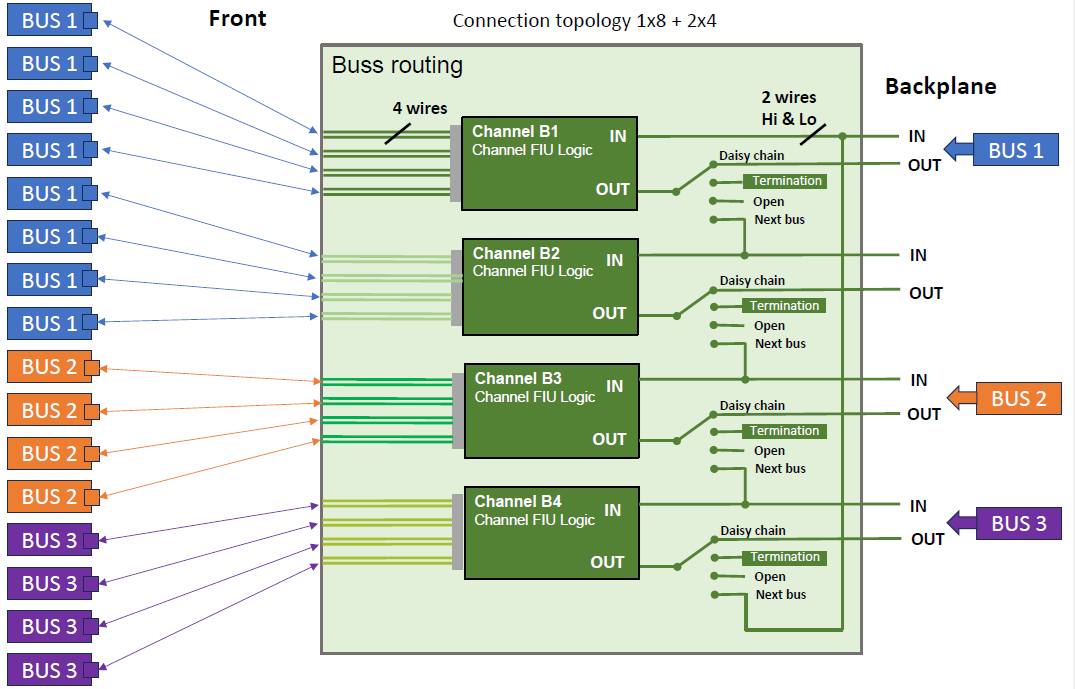

AL-2010 Switching Topologies
The AL-2010 provides multiple switch topologies. The following diagrams display routing, logic, and common switching topologies. Contact Aliaro for additional information about the AL-2010 switching capabilities.
