Analaog Output, High-Current with FIU
This signal path is dedicated to voltage signals to the ECU that can simulate sensors or output of other ECUs where the user needs to simulate electrical faults such as short to GND or Vbat, open circuit or short circuit with a current up to 40A.
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 12 |
| Voltage | ±60 V |
| FIU current | 10 A/CH, 40 A maximum |
Components
| Component | Model | Specifications | Part Number |
|---|---|---|---|
| SLSC | AL-1010 (x2) | AL-1010 | 788117-01 (Standard version) 788118-01 (Alternate version with AMP) |
| AL-1010 Amplifier Module | C023 | AL-1010 with AMP | Contact NI |
| RTI | B071 | B071 | 790671-01 |
| Molex Connector | 436450800 (Housing), 43030-0038 (Pins) | Housing, Pins | Molex Part Number: 0436450800 Molex Part Number: 0430300038 |
| IX Cable | CU_SH68M-8IXBF_AO_SE+ | SH68M-4IXBF AO SE cable | 134728-01 – 1 meter version 134728-1R6 – 1.6 meter version |
| PXI | PXIe-6738, PXIe-6739 | PXIe-6738, PXIe-6739 | 783800-01, 783801-01 |

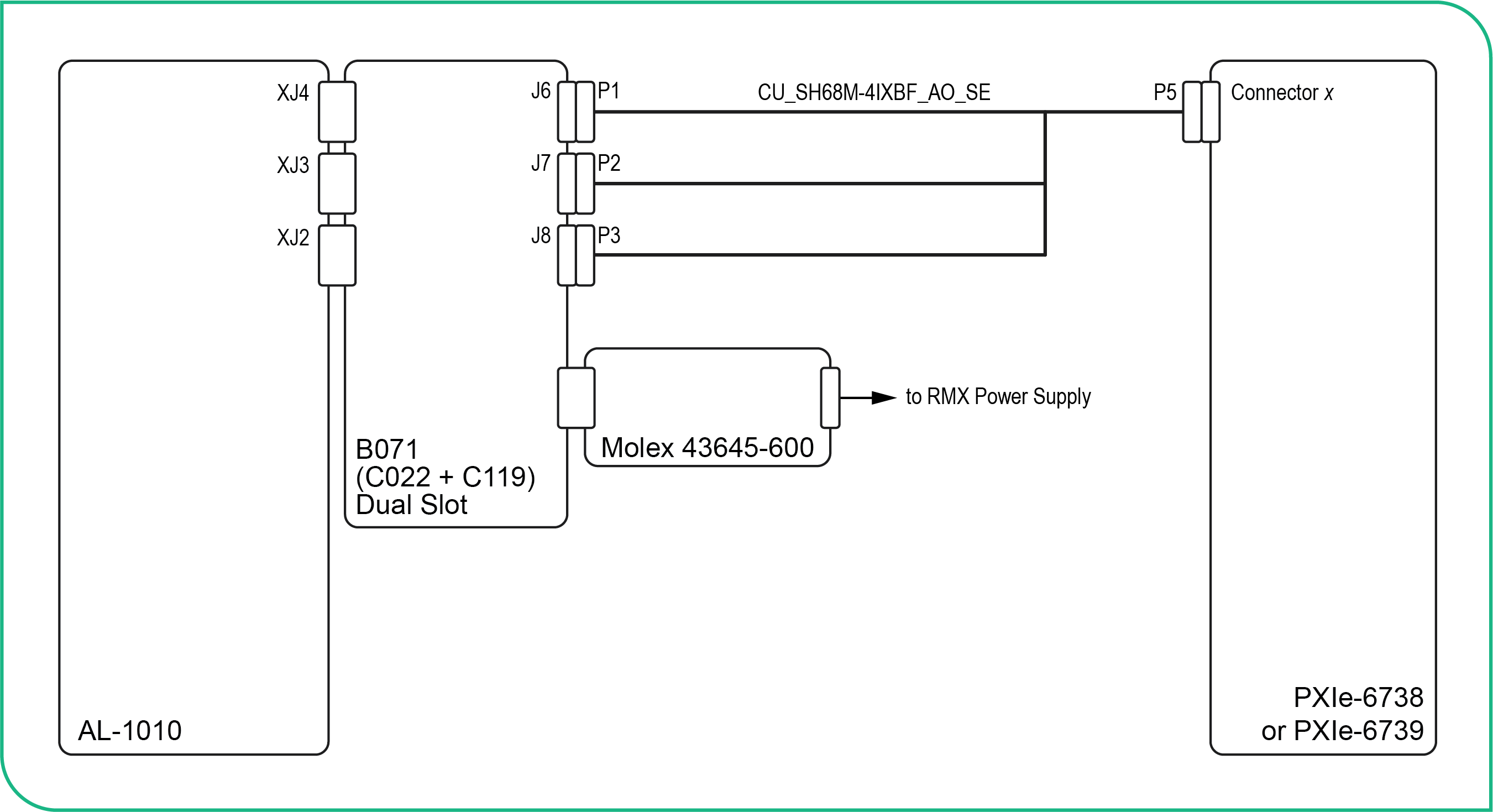

Connection Diagram
