AI Low-Current with FIU
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 32 |
| Channels groups | Channels 1 to 15 PXI DAQ, Channels 6 to 24 PXI Pass-through, Channels 25 to 32 Onboard DAQ |
| Voltage | PXI DAQ ±60 V, PXI Pass-through ±10 V, Onboard DAQ ±60 V |
| FIU current | 1 A/CH, 2 A maximum |
Components
| Component | Model | Specifications | Part Number |
|---|---|---|---|
| SLSC | AL-1032 | AL-1032 | 790679-01 |
| RTI | B061 | B061 | 790669-01 |
| Molex Connector | 436450800 (Housing), 43030-0038 (Pins) | Housing, Pins | Molex Part Number: 0436450800 Molex Part Number: 0430300038 |
| IX Cable | CU_SH68M-8IXBF_AI_DIFF | SH68M-8IXBF AI DIFF cable | 134730-01 – 1 meter version 134729-1R6 – 1.6 meter version |
| PXI | PXIe-6363, PXIe-6355, or PXIe-6365 | PXIe-6363, PXIe-6355, PXIe-6365 | 781056-01, 783632-01, 783633-01 |

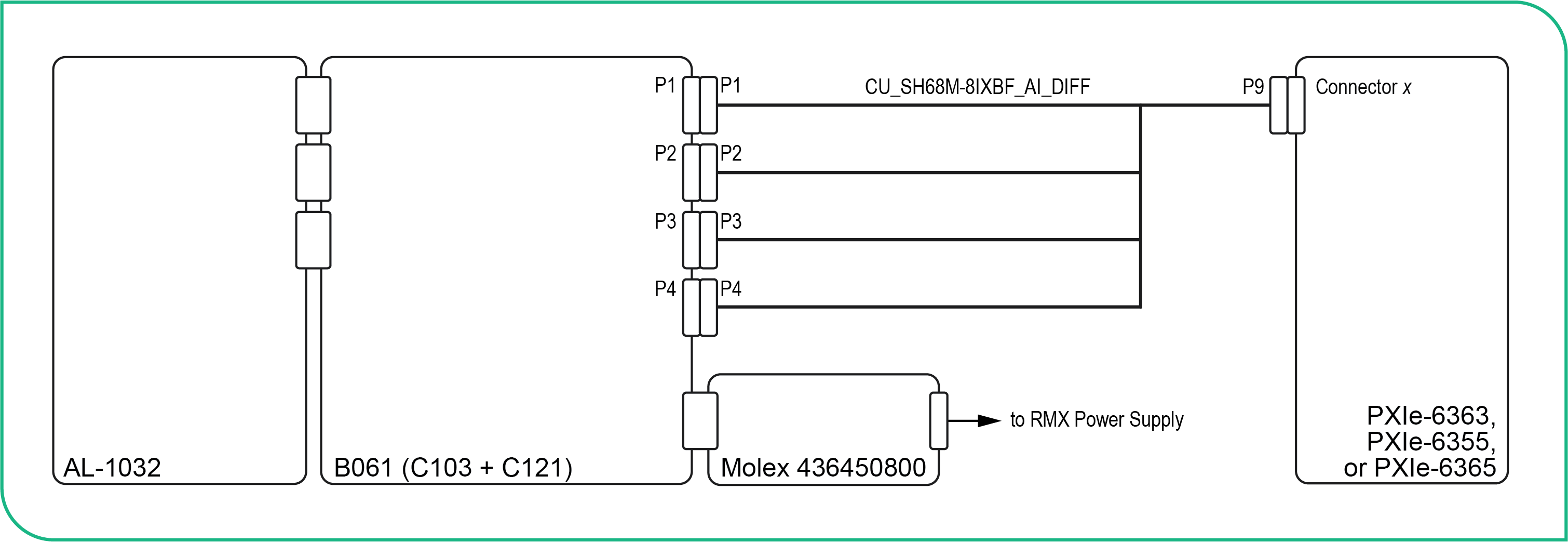

Connection Diagram
