Compiling a Plant Model for NI HIL Real-Time Target - CPU

Pre-requisite

  • Install VeriStand Model Generation Support in Simulink
  • Open the Vehicle Model from the Simulink simulation

Procedure

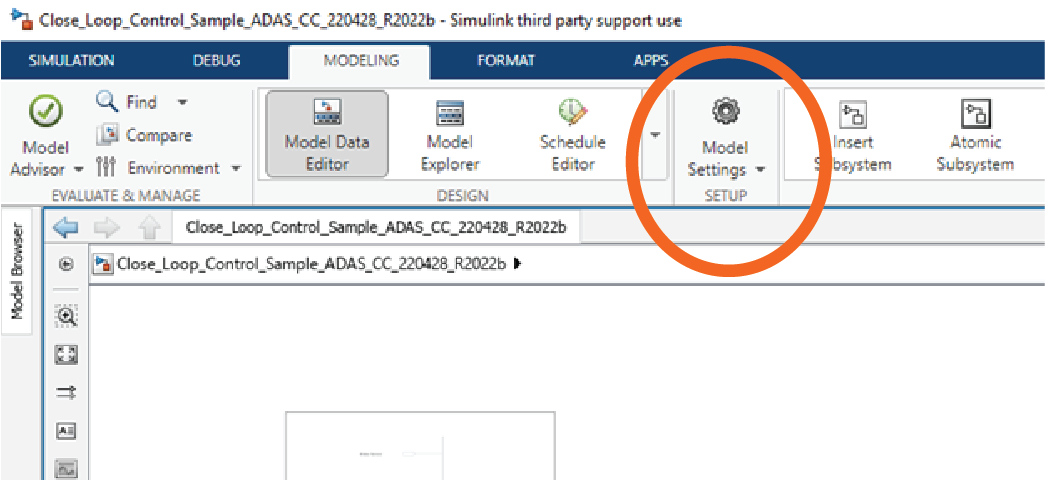

  1. On the Modeling tab, select Model Settings from the menu.

    ../image/model-settings-menu.png

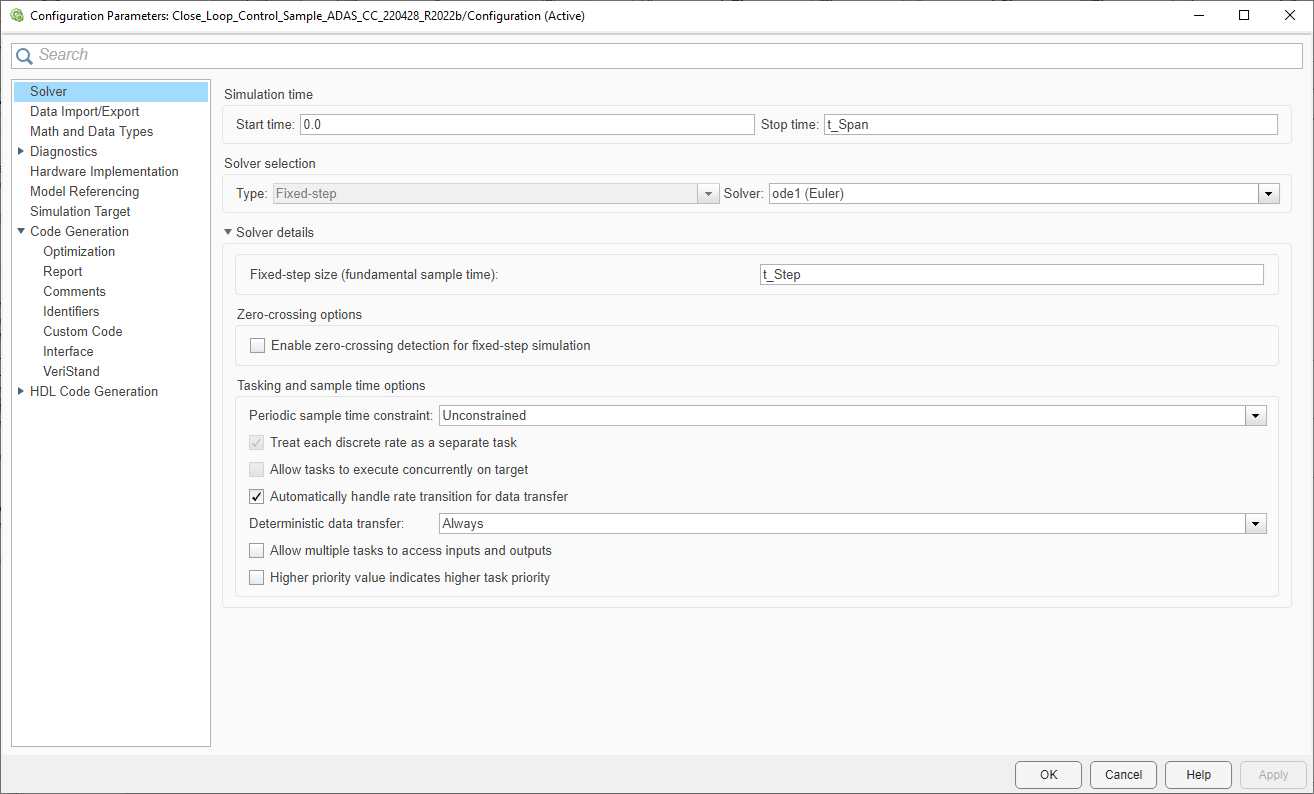

  2. Click Solver in the left-side navigation tree and verify the settings for model compilation.

    ../image/model-settings-menu-solver-example.png

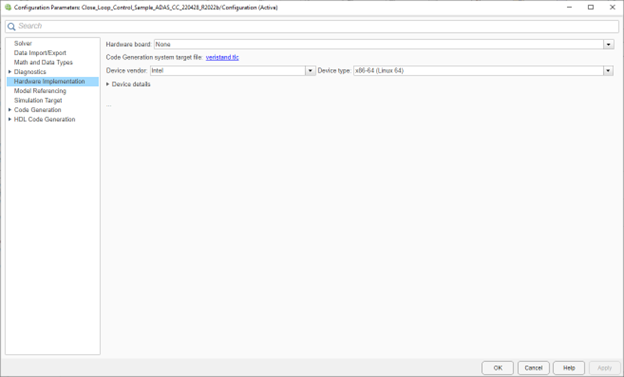

  3. Click Hardware Implementation in the left-side navigation tree and verify the settings.

    ../image/model-settings-menu-hardware-implementation-example.png

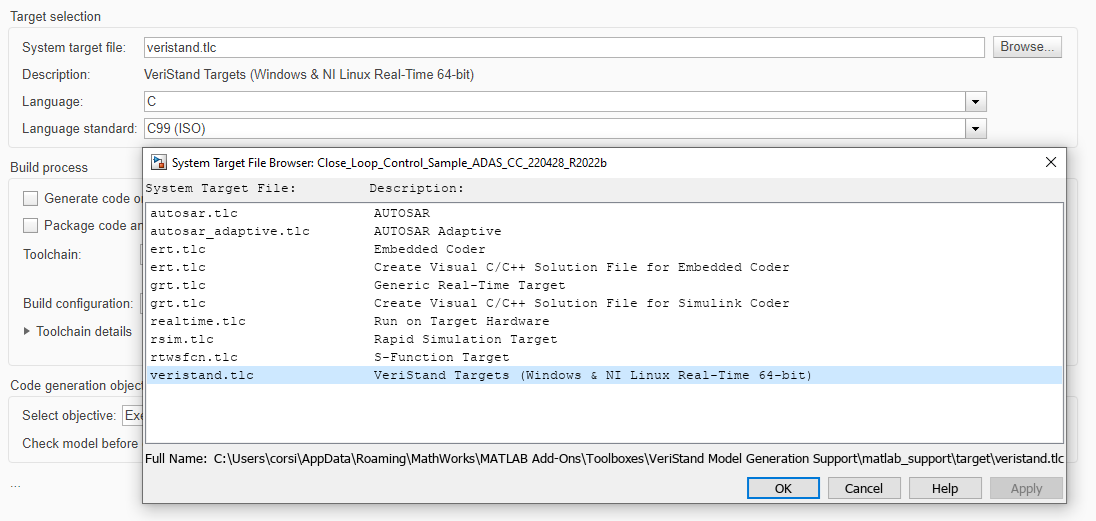

  4. Click Code Generation in the left-side navigation tree and select veristand.tlc for the System target file. The option appears only after installation of the VeriStand Model Generation Support Add-on for MATLAB.

    ../image/model-settings-menu-system-target-file.png

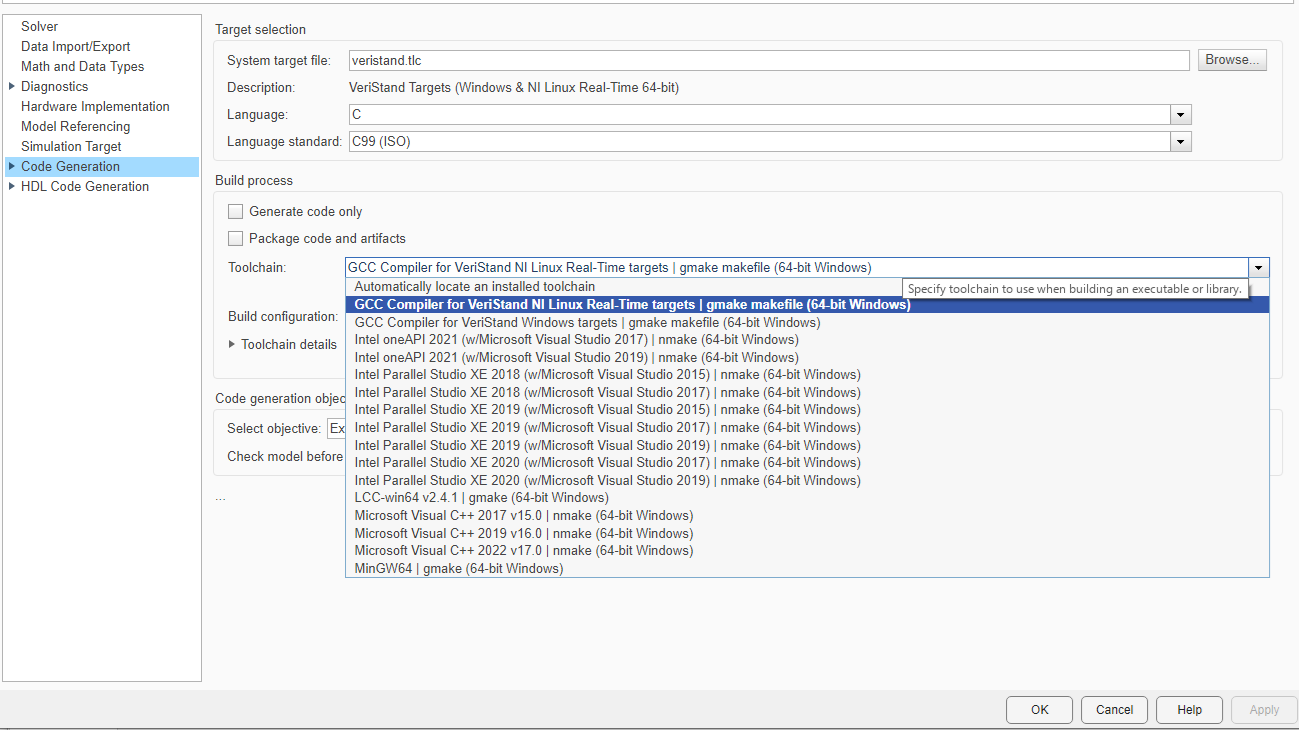

  5. On the Code Generation tab select GCC Compiler for VeriStand NI Linux Real-Time targets from the Toolchain drop-down menu.

    ../image/model-settings-menu-toolchaing.png

  6. Click OK to close the Configuration Parameters dialog box.

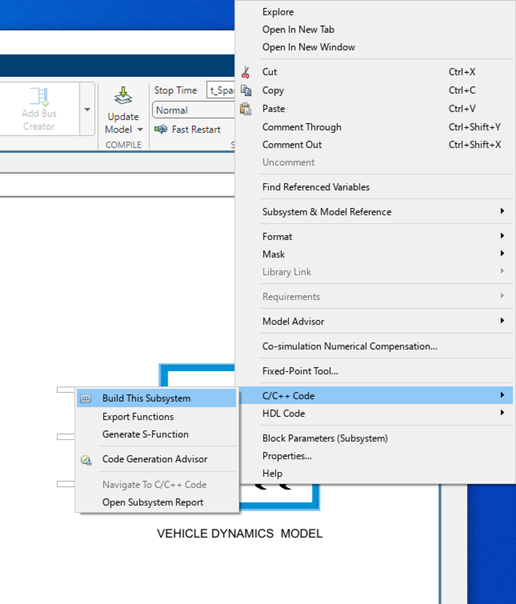

  7. In the Model Browser, right-click the vehicle dynamics model and select C/C++ Code»Build This Subsystem from the menu.

    ../image/model-build-this-subsystem.png

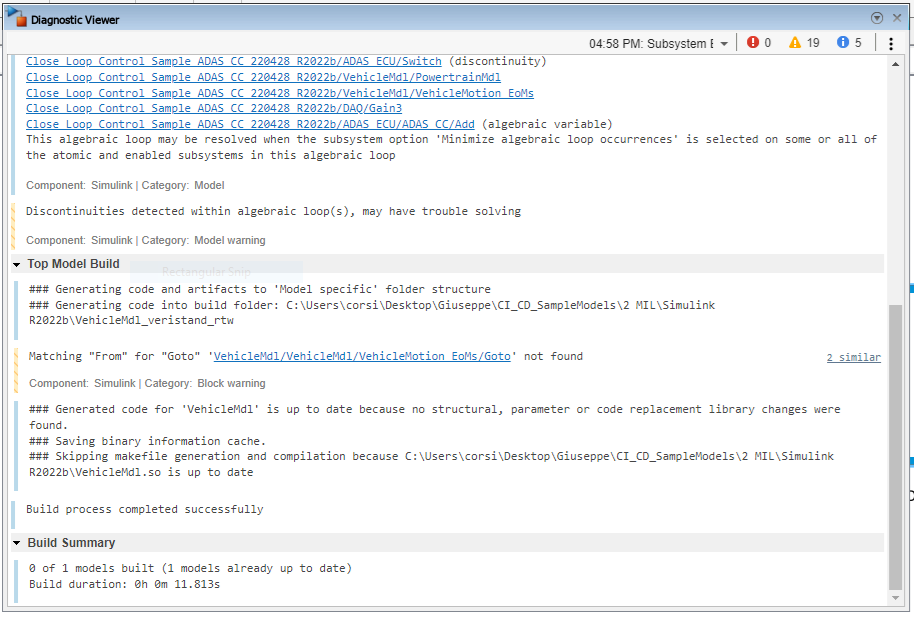

  8. View the log file from the building process in the Diagnostic Viewer.

    ../image/diagnostic-viewer-code-generated.png

Post-requisite

  • Note the location of the resulting compilation file for import into VeriStand.

    ../image/veristand-model-files-from-simulink-highlighted.png

  • Import the model files into VeriStand

How to interface with I/Os and Parameters of Simulink® Models in VeriStand

How to interface with 1D-Array Parameters of Simulink® Models in VeriStand
