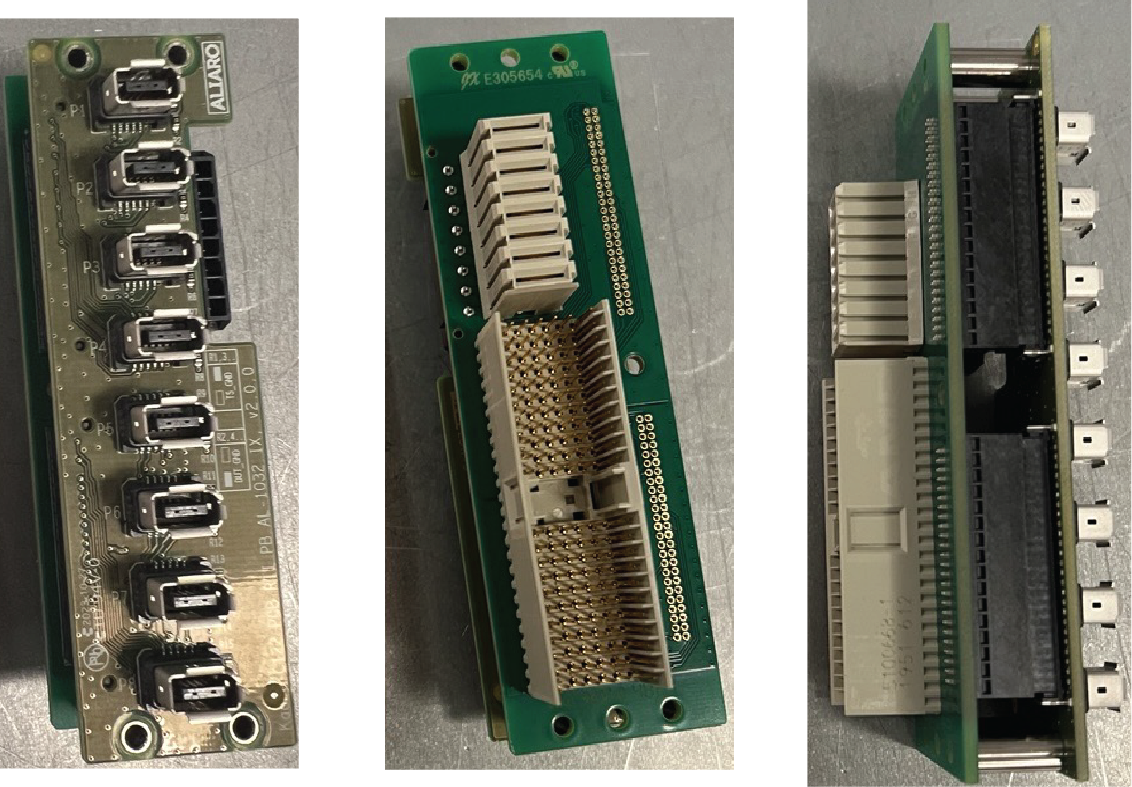

B061 RTI
Use the B061 with AL-1032 MIO module for low-current AI, AO and DIO with FIU applications.
Molex Connector Pinout
| Molex Pin | Connection | Details |
|---|---|---|
| 1 | AUX 1 | This terminal is the positive rail of an external source. This is typically configured as battery voltage. Voltage input 0 V DC to 60 V DC. |
| 2 | AUX 2 | This terminal is the negative rail of an external source. This is typically configured as battery voltage. Voltage input 0 V DC. |
| 3 | EXT 1A | This terminal is the positive rail of an external source. EXT 1A is propagated to the first 16 channels on the board. Voltage input 0 V DC to 60 V DC. |
| 4 | EXT 2A | This terminal is the negative rail of an external source. EXT 2A is propagated to the first 16 channels on the board. Voltage input 0 V DC. |
| 5 | EXT 1B | This terminal is the positive rail of an external source. EXT 1B is propagated to the last 16 channels on the board. Voltage input 0 V DC to 60 V DC. |
| 6 | EXT 2B | This terminal is the negative rail of an external source. EXT 2B is propagated to the last 16 channels on the board. Voltage input 0 V DC. |
| 7 | AMP P | This terminal is positive rail of supply voltage for optional amplifier addon. Voltage input +24 V DC. GND pin on front SLSC connector |
| 8 | AMP N | This terminal is negative rail of supply voltage for optional amplifier addon. Voltage input -24 V DC. GND pin on front SLSC connector |
SLSC Channels
| SLSC Channels | RTI Connector |
|---|---|
| DIO (1–8) | P1 |
| DIO (9–16) | P2 |
| DIO (17–24) | P3 |
| DIO (25–32) | P4 |
| AI CH (1–8) | P5 |
| AI CH (9–15) | P6 |
| AI/AO CH (16–24) | P7 |
| AO (25–32) | P8 |
