Inverter AO with FIU (PXIe-7868R)
Attributes
| Attribute | +Value |
|---|---|
| Channels/signal path | 16 AO with FIU |
| Differential AO voltage | ±20 V |
Components
| Component | Model | Specifications | Part Number |
|---|---|---|---|
| SLSC | OP8934-F | OP8934 | 787856-01 |
| RTI | RTI-12307 | RTI-12307 | 785379-01 |
| Cable | OP-8810-1 SLSC | OP-8810-1 SLSC | 788250-01 |
| PXI | PXIe-7868R | PXIe-7868R | 785571-01 |

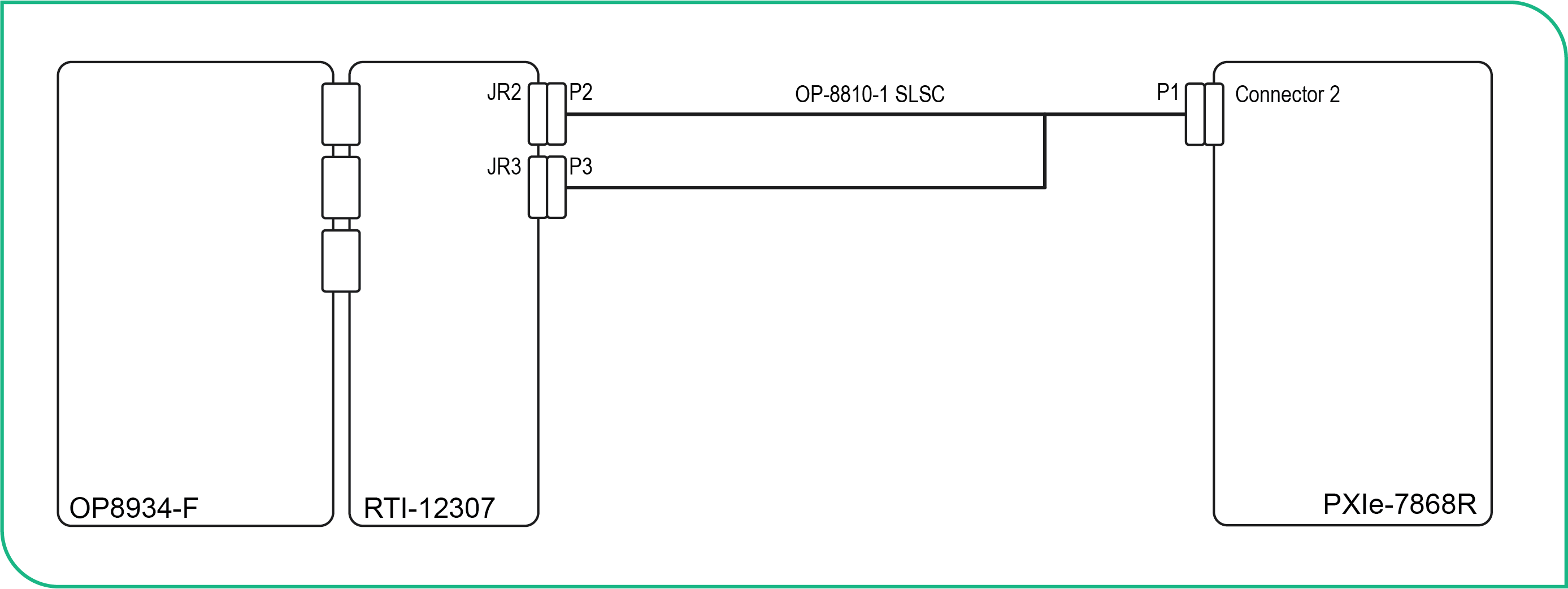

Connection Diagram
