FPGA DIO Low-Current with FIU
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 12 |
| Direction | Bidirectional |
| Voltage | 0 V to 60 V |
| FIU Current | 1 A/CH, 2 A maximum |
Components
| Component | Model | Specifications |
|---|---|---|
| SLSC | AL-1032 | AL-1032 |
| RTI | B061 | B094 |
| Molex Connector | 436450800 (Housing), 43030-0038 (Pins) | Housing, Pins |
| IX Cable | CU_SH68M-4IXBF_DIO_DIFF | SH68M-4IXBF DIO DIFF cable |
| PXI | PXIe-7820R, PXIe-7821R, or PXIe-7822R | PXIe-7820R, PXIe-7821R, PXIe-7822R |

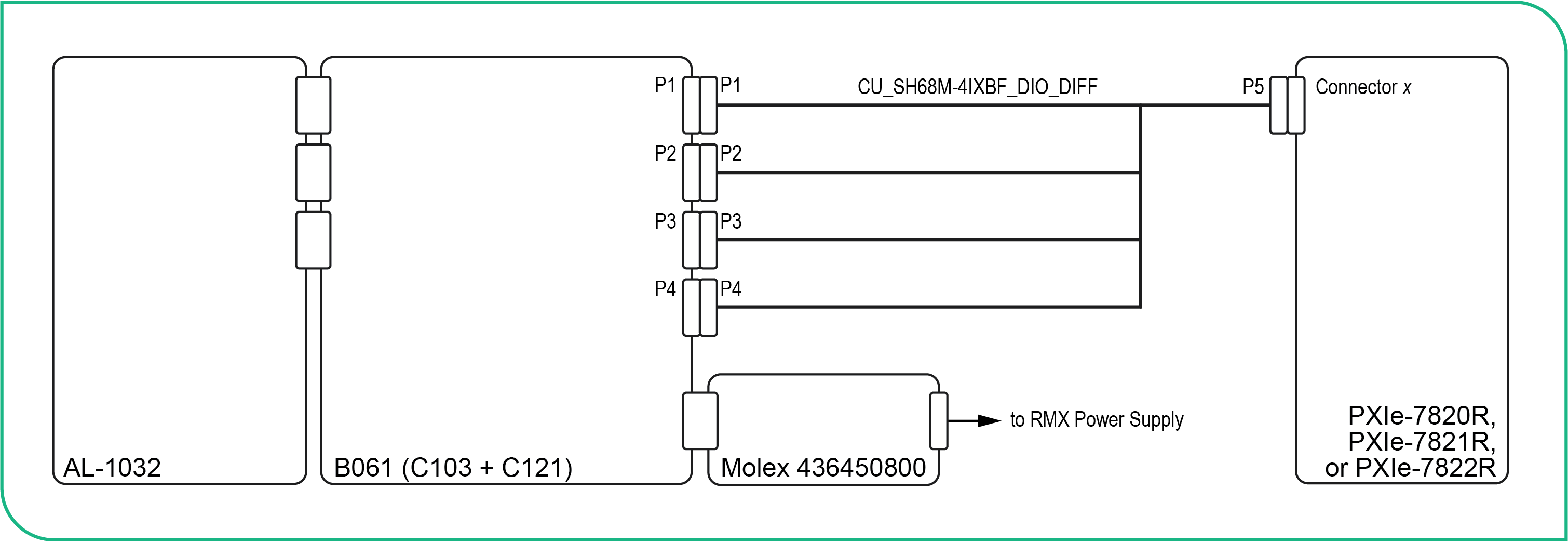

Connection Diagram
Channel Parameters
| SLSC Channel | SLSC Channel Parameters | PXI Channel | PXI Channel Paramters |
|---|---|---|---|
| TBD | TBD | TBD | TBD |
