FPGA DIO, No FIU
Attributes
| Attribute | Value |
|---|---|
| Channels/signal path | 32 |
| Direction | Bidirectional |
| Voltage | 0 V to 33 V |
| FIU Current | 50 mA/CH |
Components
| Component | Model | Specifications |
|---|---|---|
| SLSC | SLSC-12201 | SLSC-12201 |
| RTI | RTI-12309 | RTI-12309 |
| IX Cable | CU_SH68M-4IXBF_DIO_DIFF | SH68M-4IXBF DIO DIFF cable |
| PXI | PXIe-7820R, PXIe-7821R, or PXIe-7822R | PXIe-7820R, PXIe-7821R, PXIe-7822R |

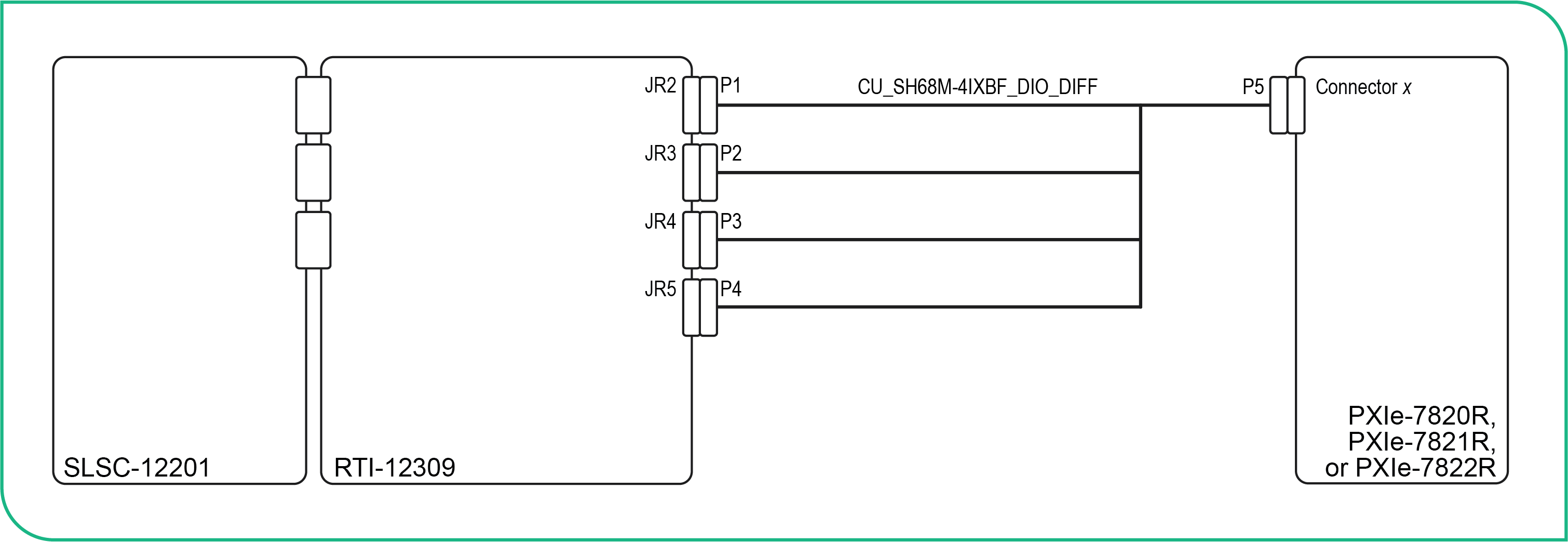

Connection Diagram
Channel Parameters
| SLSC Channel | SLSC Channel Parameters | PXI Channel | PXI Channel Paramters |
|---|---|---|---|
| TBD | TBD | TBD | TBD |
