LabVIEW VI Comparison Report
20:43:54 05/14/2026
First VI: /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.viSecond VI: /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi
| Front Panel Overview | ||
_files/fp_1.png)
|
_files/fp_2.png)
| |
| Block Diagram Overview | ||
_files/bd_1.png)
|
_files/bd_2.png)
|
- Front Panel
- Front Panel Position/Size
- Block Diagram Functional
- Block Diagram Cosmetic
- VI Attribute
Detailed Information
1. Block Diagram objects
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/0_0_0_168_1.png)
|
_files/0_0_0_168_2.png)
|

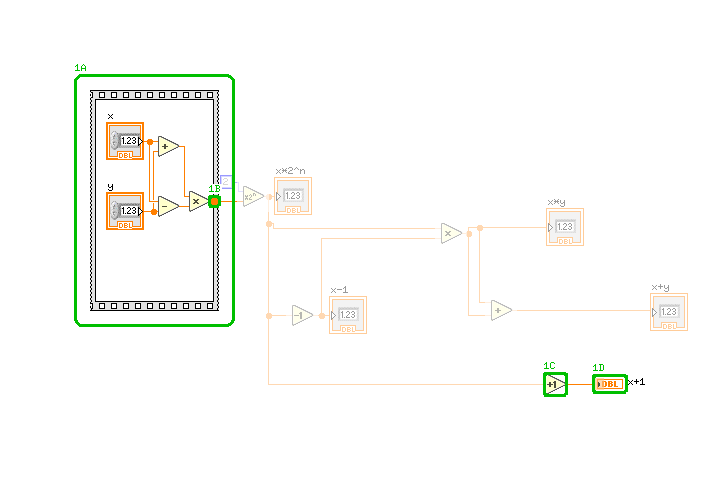

- Flat Sequence Structure - added at (87,102)
- Sequence Tunnel - added at (207,209)
- Increment - added at (542,386)
- Front Panel Terminal "x+1" - added at (591,388)
- wiring changes
2. Block Diagram objects
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/1_0_138_138_1.png)
|
_files/1_0_138_138_2.png)
|
- Add - moved : changed from "(485,260)" to "(488,312)"
- Front Panel Terminal "x+y" - moved : changed from "(644,253)" to "(647,305)"
3. Block Diagram - Diagram
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/2_0_1.png)
|
_files/2_0_2.png)
|
- Wire - front/back order of wires
4. Front Panel objects
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/3_0_0_314_1.png)
|
_files/3_0_0_314_2.png)
|
- Numeric "x+1" - added at (410,100)
5. VI Attribute - Miscellaneous
- VI Version : changed from "26.0" to "22.3"
