LabVIEW VI Comparison Report
16:25:06 05/14/2026
First VI: /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.viSecond VI: /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi
| Front Panel Overview | ||
_files/fp_1.png)
|
_files/fp_2.png)
| |
| Block Diagram Overview | ||
_files/bd_1.png)
|

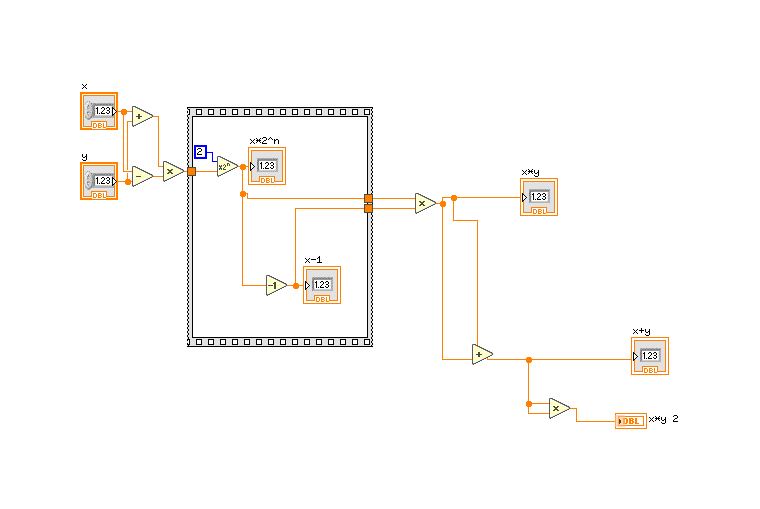

_files/bd_2.png)
|
- Front Panel
- Front Panel Position/Size
- Block Diagram Functional
- Block Diagram Cosmetic
- VI Attribute
Detailed Information
1. Block Diagram objects
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/0_0_0_168_1.png)
|
_files/0_0_0_168_2.png)
|

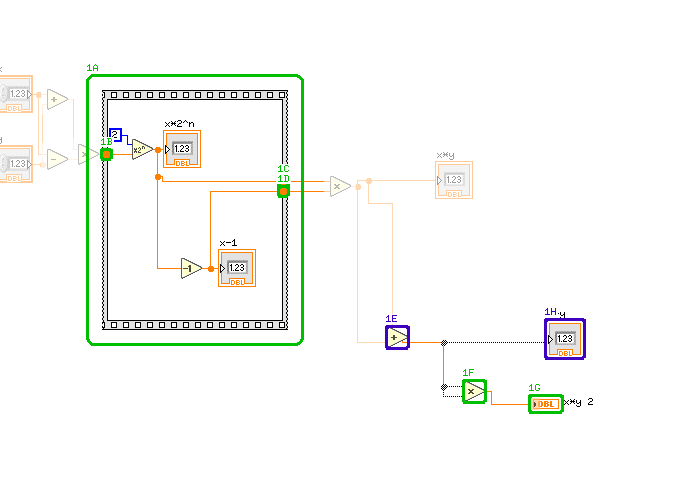

- Flat Sequence Structure - added at (210,149)
- Sequence Tunnel - added at (210,209)
- Sequence Tunnel - added at (387,236)
- Sequence Tunnel - added at (387,246)
- Add - moved : changed from "(485,260)" to "(495,386)"
- Multiply - added at (572,440)
- Front Panel Terminal "x*y 2" - added at (638,455)
- Front Panel Terminal "x+y" - moved : changed from "(644,253)" to "(654,379)"
- wiring changes
2. Front Panel objects
| /workspace-base/examples/cicd-examples/Test-VIs/ArthOps.vi | /workspace/examples/cicd-examples/Test-VIs/ArthOps.vi | |
_files/1_0_0_396_1.png)
|
_files/1_0_0_396_2.png)
|
- Numeric "x*y 2" - added at (410,100)
